GROHE QuickFix (wallmounted)
Product Catalog
APC for Stick 2hdl trimset basin 3-h M
Model: 20587DC0
Atrio Private Collection
Technical Specification
Technical Details
Product Description
wall mounted
to be used with rough-in set 29 025 002
valves hot/cold
with headparts 1/2" - 90°
GROHE Long-Life finish
GROHE EcoJoy - Less water, perfect flow
maximum flow rate (at 3 bar): 5 l/min

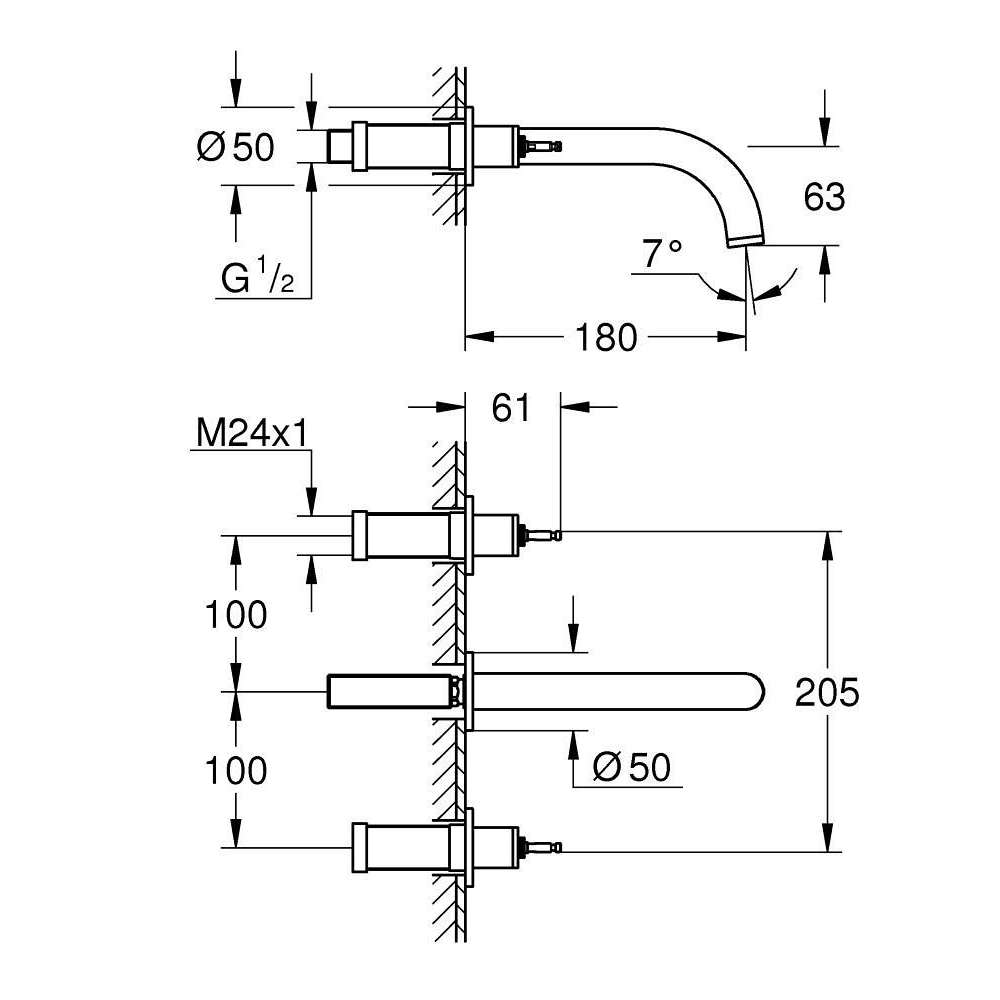

centre distance 200 mm
projection 180 mm
for stick handles
to be combined with stick sets 48 458, 48 459 or 48 646, please order separately
without roughing-in set 29 025 002 (please order separately)
Style
Contemporary
Installation Type
Wall mounted concealed
Height (mm)
80.0
Length (mm)
345.0
Width (mm)
165.0
Net Weight (kg)
1.125
Gross Weight (kg)
1.125
Colors & Finishes
Supersteel
Collection
Atrio Private Collection
Segment
Private Collections
Features & Technologies
High Spout (Kitchen)
GROHE StarLight
Easy Installation System
GROHE SilkMove
