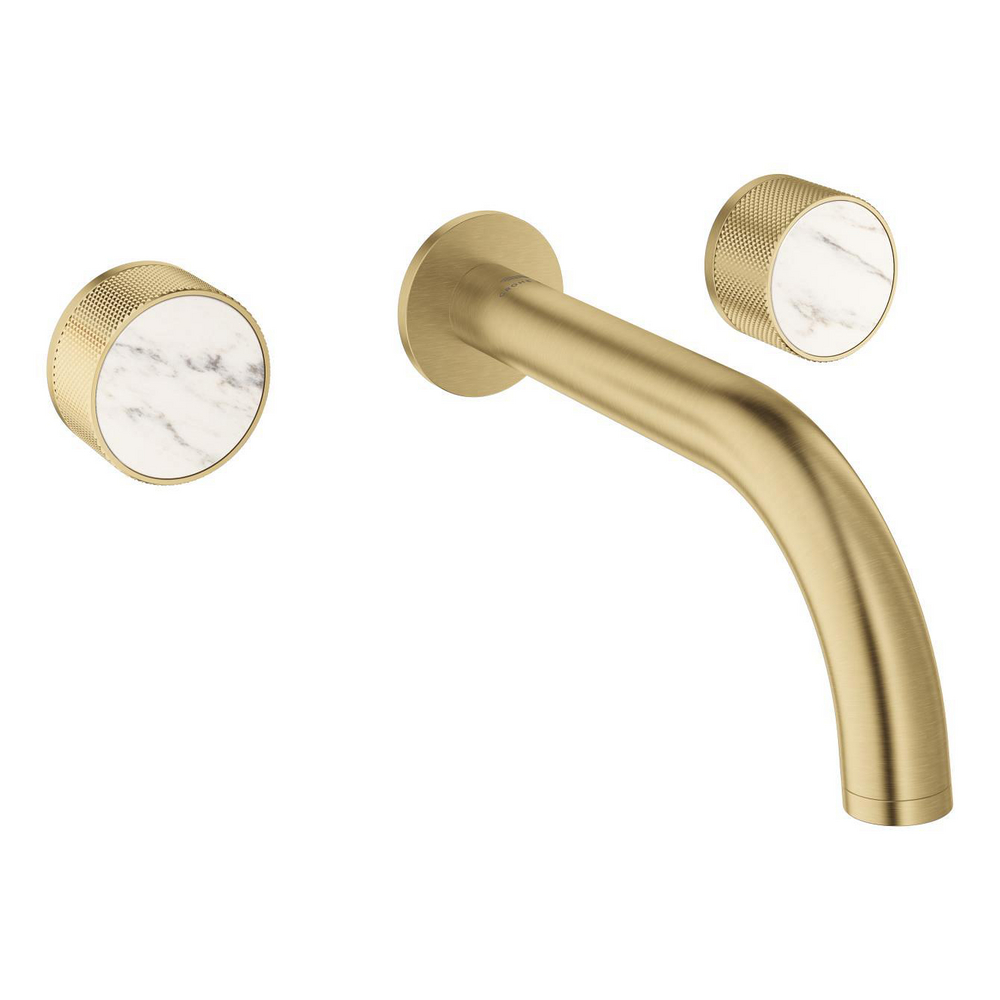

APC Knob 2hdl trimset basin 3-h M
Model: 20589GN0
Atrio Private Collection
Technical Specification
Technical Details
Product Description
wall mounted
to be used with rough-in set 29 025 002
valves hot/cold
with headparts 1/2" - 90°
GROHE Long-Life finish
GROHE EcoJoy - Less water, perfect flow
maximum flow rate (at 3 bar): 5 l/min

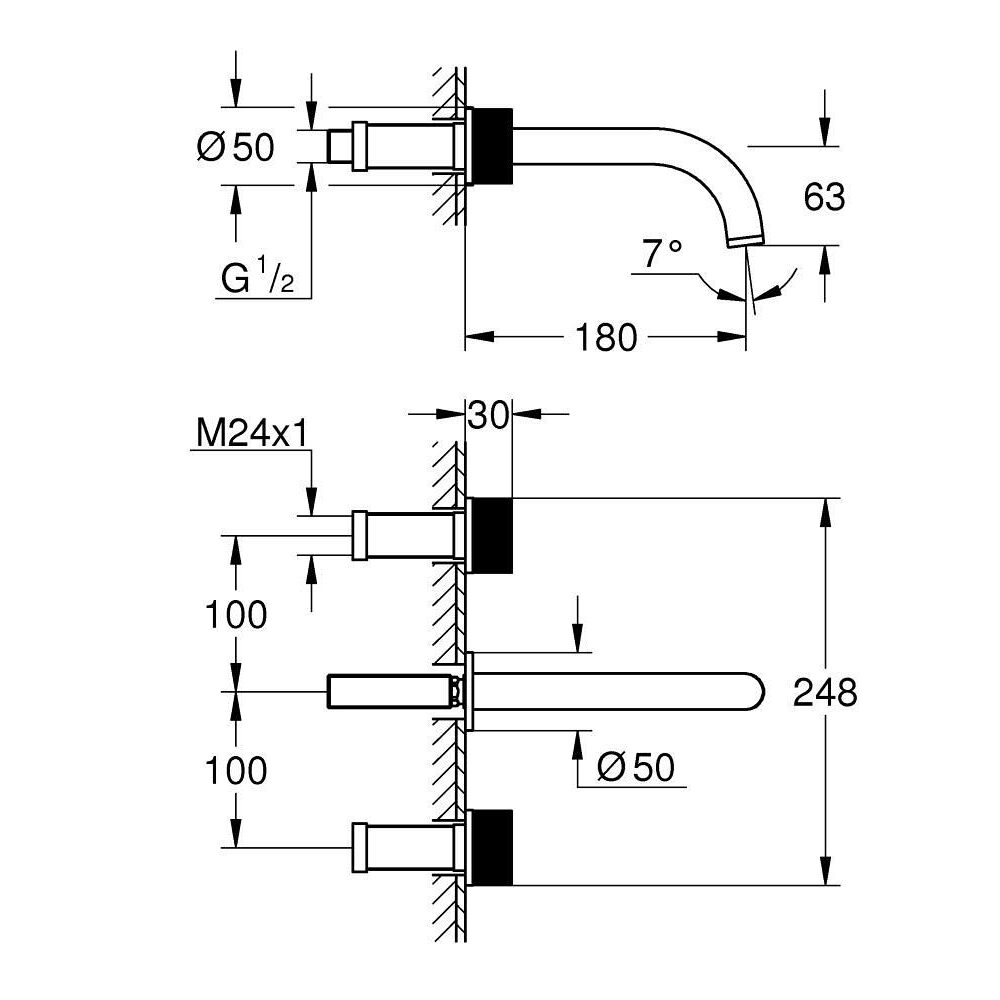

centre distance 200 mm
projection 180 mm
knobs with metal inlay
can be combined with 48 460 000 or 48 461 000
without roughing-in set 29 025 002 (please order separately)
Style
Contemporary
Installation Type
Wall mounted concealed
Height (mm)
80.0
Length (mm)
350.0
Width (mm)
170.0
Net Weight (kg)
1.42
Gross Weight (kg)
1.42
Colors & Finishes
Brushed cool sunrise
Collection
Atrio Private Collection
Segment
Private Collections
Features & Technologies
SpeedClean (Showers)
GROHE Rain O2 spray
GROHE StarLight
Rain spray
