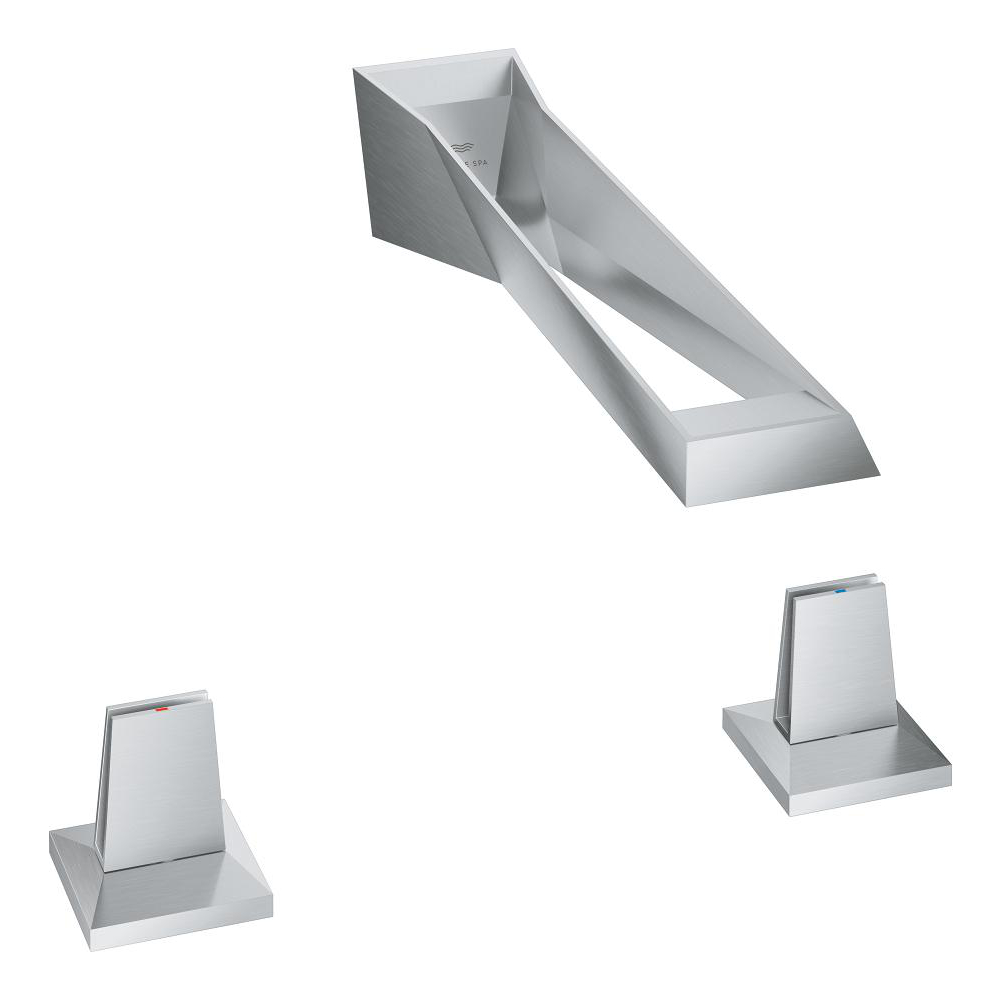

Allure Brilliant 2hdl basin 3-h M
Model: 20635SD0
Allure Brilliant
Technical Specification
Technical Details
Product Description
GROHE EcoJoy - Less water, perfect flow
maximum flow rate (at 3 bar): 5 l/min
spout with integrated mousseur
red and blue markings on handles for hot and cold water
valves hot/cold with ceramic headparts
pressure-proof, flexible connection hoses
between spout and side valves
projection 256 mm
technical data
flow pressure min 0.5 bar
recommended pressure 1.0 - 5.0 bar
if static pressure is more than 5 bar fit pressure reducer
avoid major pressure differences between cold and hot water supply
max. temperature hot water inlet: 80°C
recommended temperature hot water inlet (energy saving): 60°C
Style
Cosmopolitan
Installation Type
Wall mounted concealed
Height (mm)
305.0
Length (mm)
440.0
Width (mm)
185.0
Net Weight (kg)
2.179
Gross Weight (kg)
2.179
Colors & Finishes
Stainless steel
Collection
Allure Brilliant
Segment
Private Collections
