Atrio New THM trimset shower
Model: 24358AL0
Atrio New Classic
Technical Specification
Technical Details
Product Description
trim set for GROHE Rapido SmartBox (35 600/35 604)
GROHE TurboStat compact cartridge with wax thermoelement
GROHE Long-Life finish
wall escutcheon with GROHE FastFixation
(covered escutcheon- and shaft sealing, covered fixing)
metal escutcheon, retroactively 6° adjustable
printed head and hand shower symbol
GROHE SafeStop safety button at 38°C
(calibration required)
GROHE SafeStop Plus optional temperature limiter at 43°C or 46°C included
GROHE AquaDimmer, integrated shut off/diverter valve
metal handles
without roughing-in-set
flow performance:
outlet B = 27 l/min
outlet C = 30 l/min
Style
Contemporary
Installation Type
Wall mounted concealed

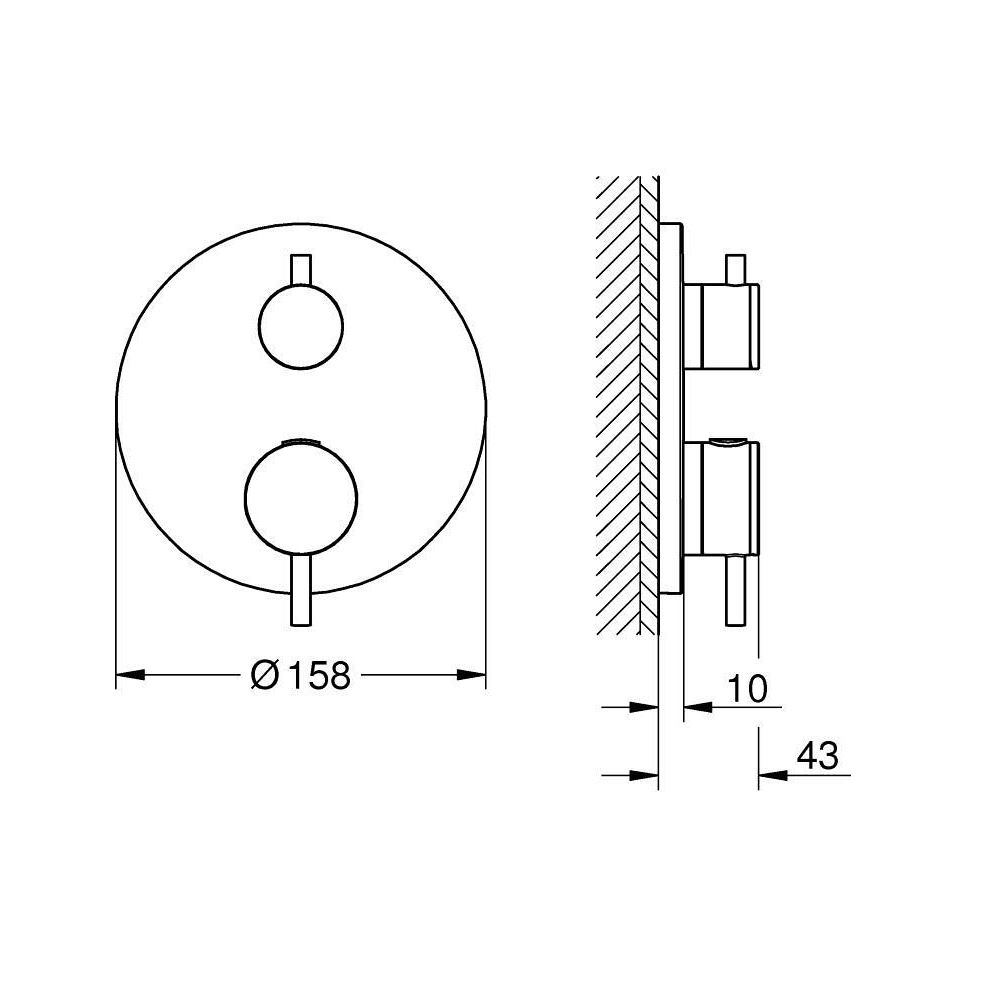

Height (mm)
250.0
Length (mm)
200.0
Width (mm)
180.0
Net Weight (kg)
1.745
Gross Weight (kg)
1.745
Colors & Finishes
Brushed hard graphite
Collection
Atrio New Classic
Segment
Grand Luxury
