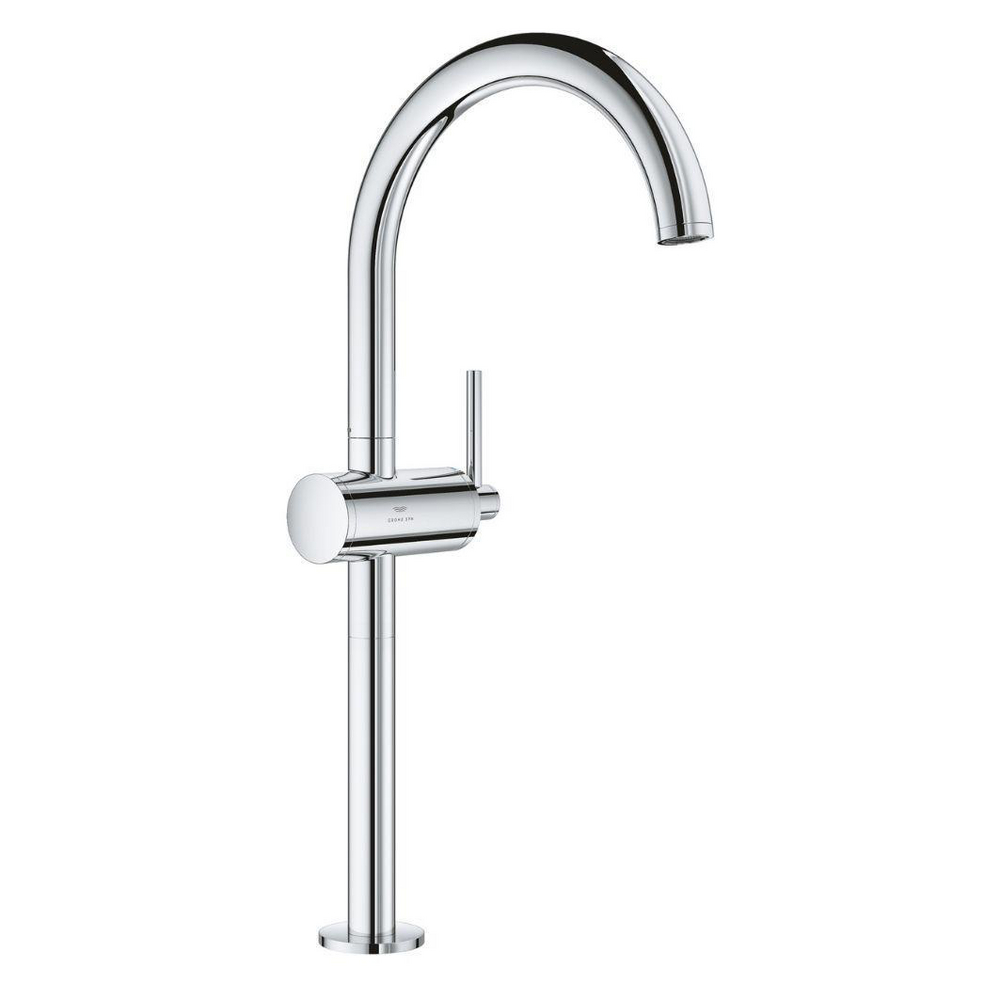

Atrio New OHM vessel basin XL
Model: 24365000
Atrio New Classic
Technical Specification
Technical Details
Product Description
monobloc installation
for free-standing basins
28 mm ceramic cartridge
with GROHE SilkMove
with temperature limiter
GROHE Long-Life finish
GROHE EcoJoy - Less water, perfect flow
maximum flow rate (at 3 bar): 5 l/min
swivel tubular C-spout with mousseur
stop limiter
adjustable swivel area 0° / 150° / 360°
Push-open waste set 1 1/4"
flexible connection hoses
Style
Contemporary
Installation Type
Deck mounted

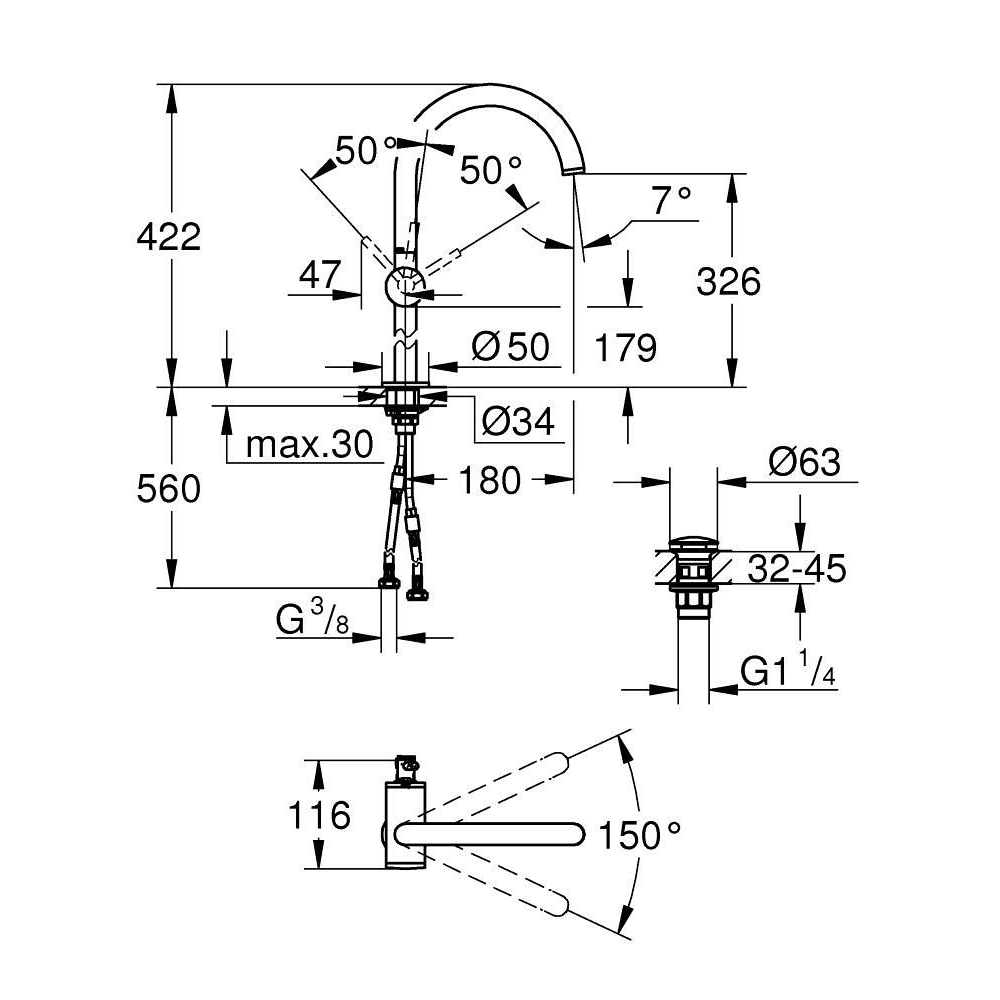

Height (mm)
124.993
Length (mm)
584.987
Width (mm)
194.996
Net Weight (kg)
2.545
Gross Weight (kg)
2.545
Colors & Finishes
Chrome
Collection
Atrio New Classic
Segment
Grand Luxury
