GROHE TurboStat
Product Catalog

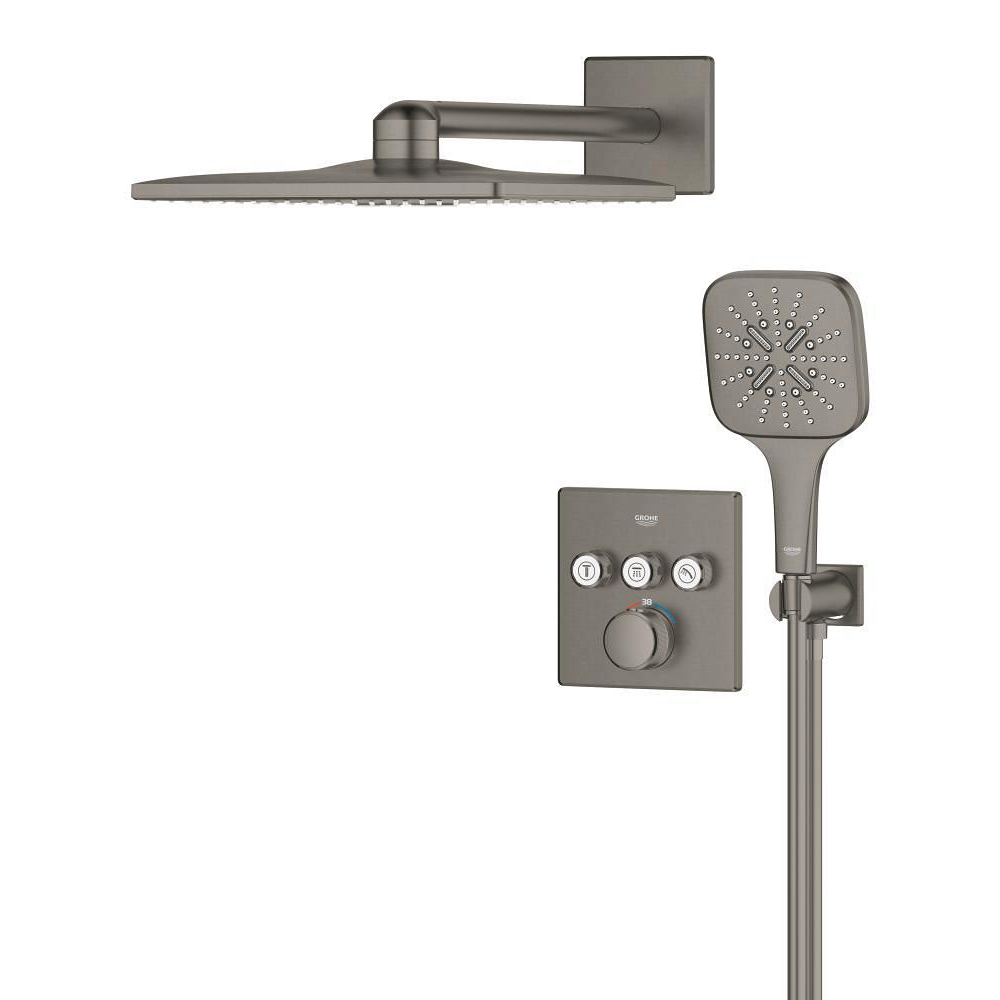

Concealed shower system with Rainshower SmartActive 310 Cube
Model: 34864AL0
Grohtherm SmartControl

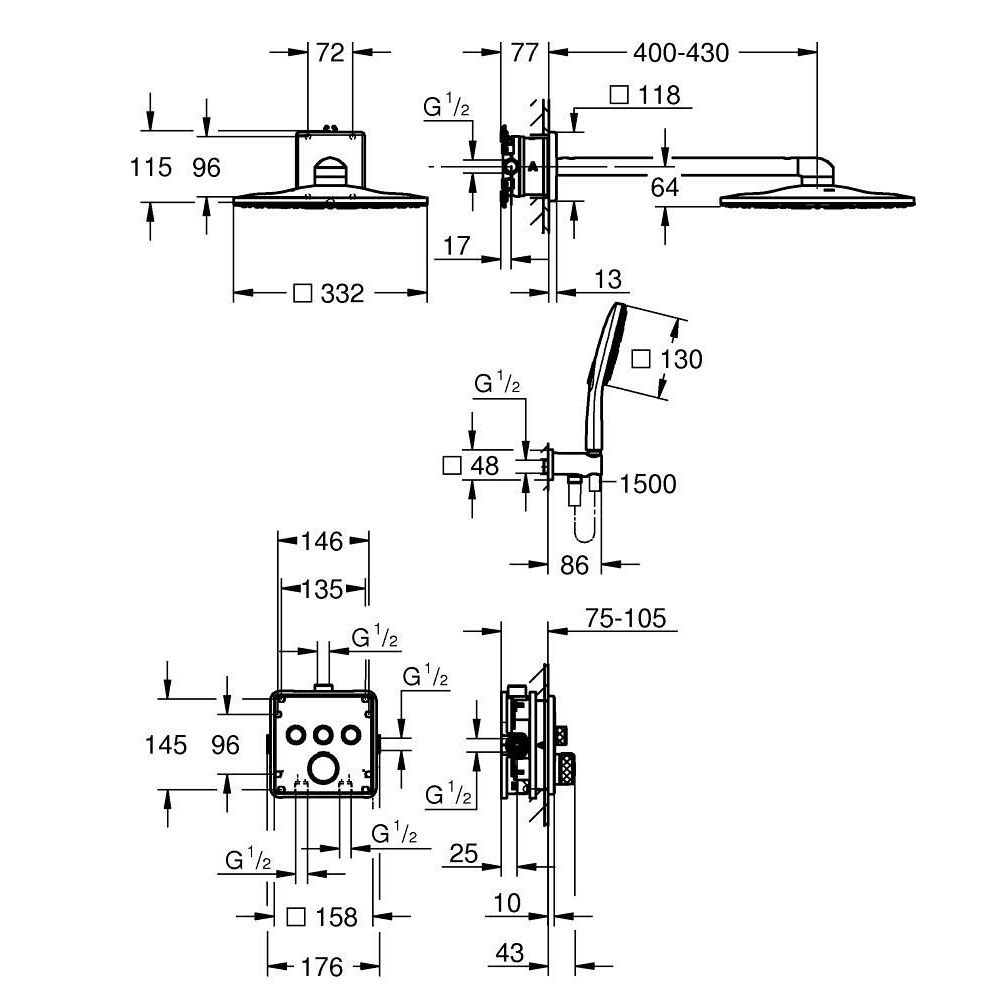

Technical Specification
Technical Details
Product Description
Consisting of:
concealed thermostat with 3 valves (29 126)
GROHE Rapido SmartBox universal rough-in box, 1/2" (35 604)
Rainshower SmartActive 310 Cube head shower set 2 sprays (26 479) including horizontal shower arm 430 mm and head shower rough-in (26 483)
Rainshower SmartActive 130 Cube hand shower 3 sprays
shower outlet elbow 1/2" with holder (26 659)
Silverflex shower hose 1500 mm 1/2" x 1/2"
optional flow regulator 9.5 l/min included for hand shower
Installation Type
Wall mounted concealed
Height (mm)
400.0
Length (mm)
443.0
Width (mm)
356.0
Net Weight (kg)
10.45
Gross Weight (kg)
10.45
Colors & Finishes
Brushed hard graphite
Collection
Grohtherm SmartControl
Segment
Luxury
Features & Technologies
SafeStop
GROHE ProGrip
GROHE EcoJoy (Showers)
SmartControl
