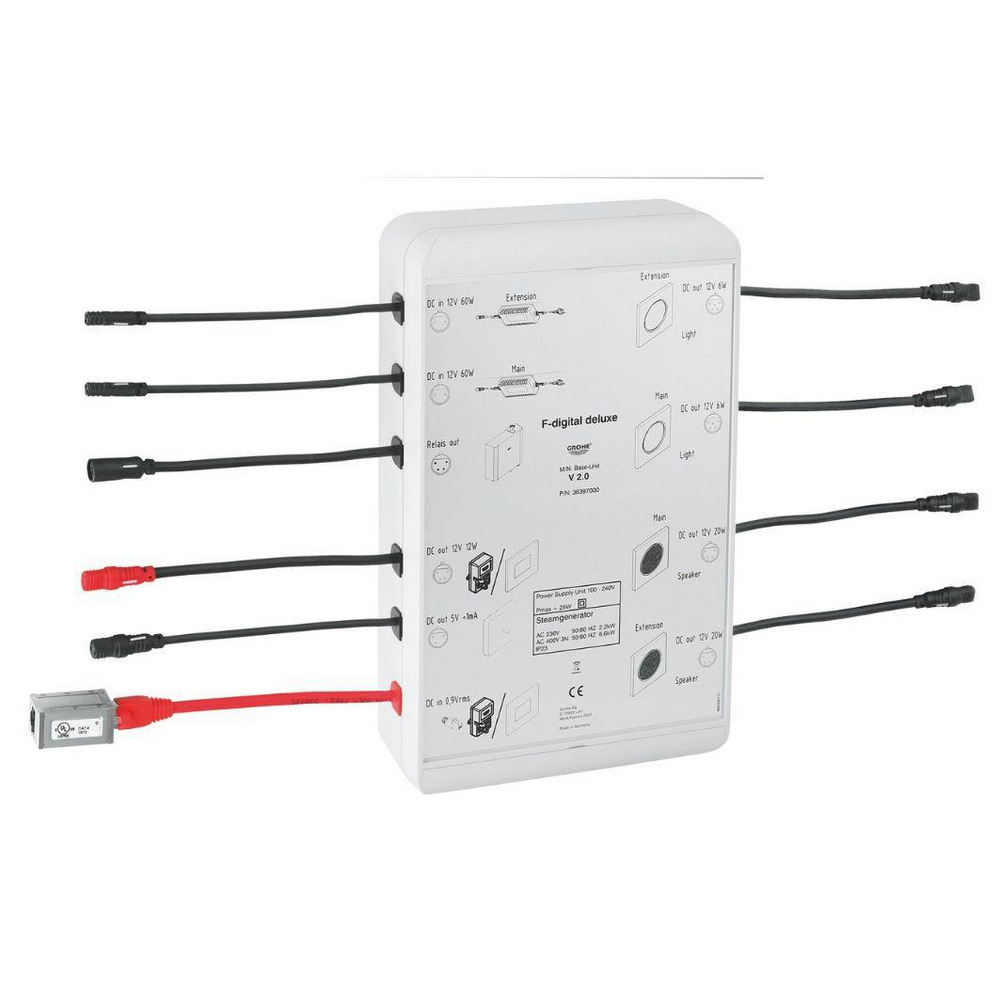

SPA Base Unit Box 2.0 Bluetooth
Model: 36476000
F-digital deluxe
Technical Specification
Technical Details
Product Description
for connecting light, sound and steam modules
Consisting of:
2 plug connections, each for one pair of sound modules (36 473 000)
2 plug connections, each for one pair of light modules (36 472)
2 plug connections for steam module (29 414 000), including 1 connection for steam generator and 1 connection for temperature sensor
2 plug connections for power supply (per power supply max. 4 devices light/sound)
2 plug connections for Bluetooth unit (supply voltage and data line)
CE approved
must be accessible for service
optional the base unit box can be placed into extra equipment 36 474 000
Style
Cosmopolitan

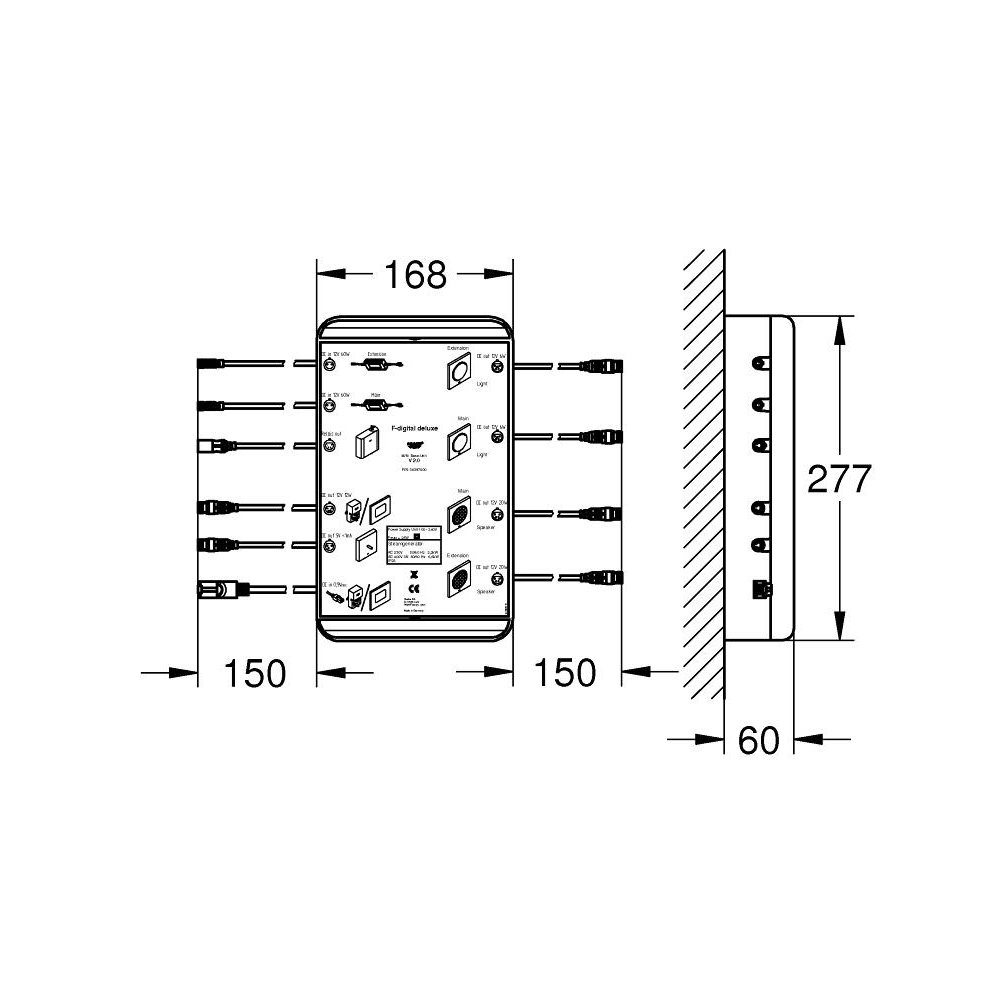

Height (mm)
100.0
Length (mm)
299.999
Width (mm)
299.999
Net Weight (kg)
1.535
Gross Weight (kg)
1.535
Colors & Finishes
Chrome
Collection
F-digital deluxe
Segment
Others
