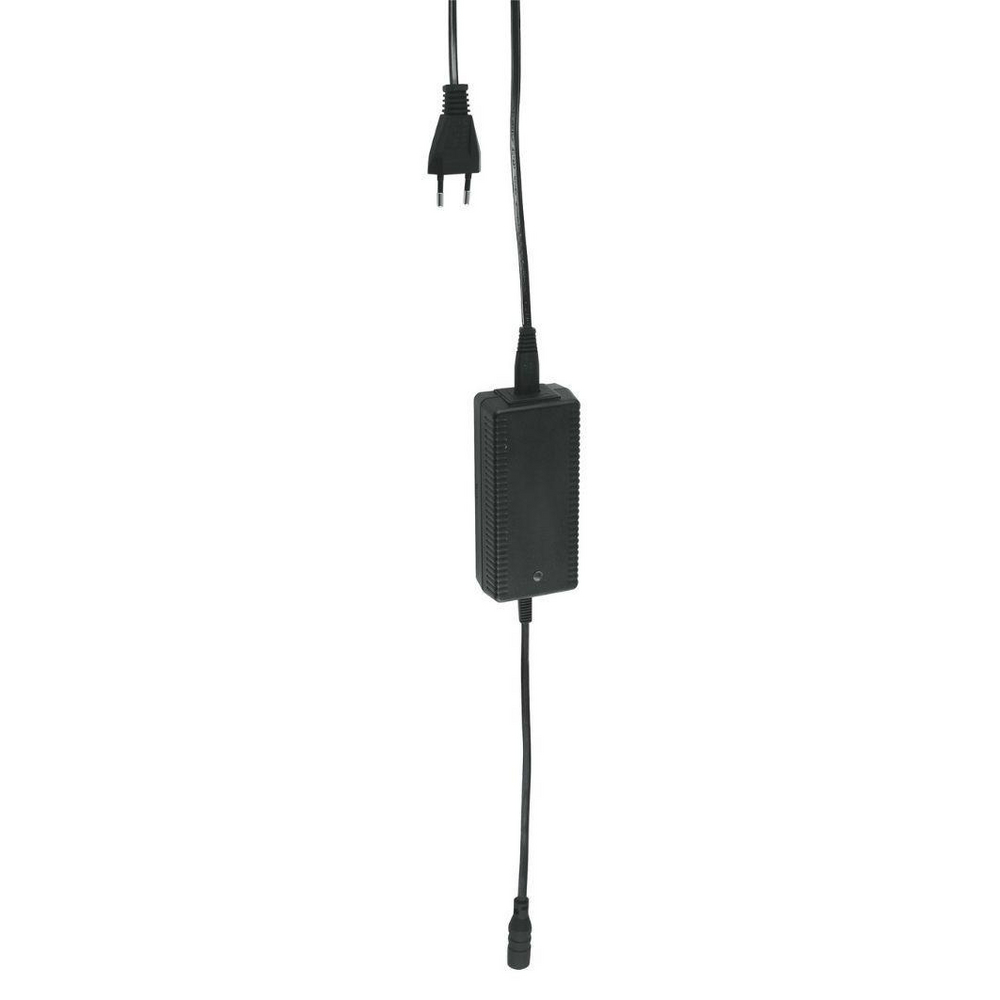

F-digital deluxe power supply unit
Model: 42633000
F-digital deluxe
Technical Specification
Technical Details
Product Description
power supply for base unit box (26 864 000 or 36 476 000)
each power supply for 2 light/sound modules (36 472 000 or 36 473 000)
total 2 power supplies max (8 devices max.) can be connected to the base unit box
with one power supply 4 devices (light/sound modules) can be driven
per light module: 1 device
per sound module: 1 device
input voltage: 90-240 V AC, 50-60Hz
output voltage: 12 V DC
CE and CCC approved
Style
Cosmopolitan

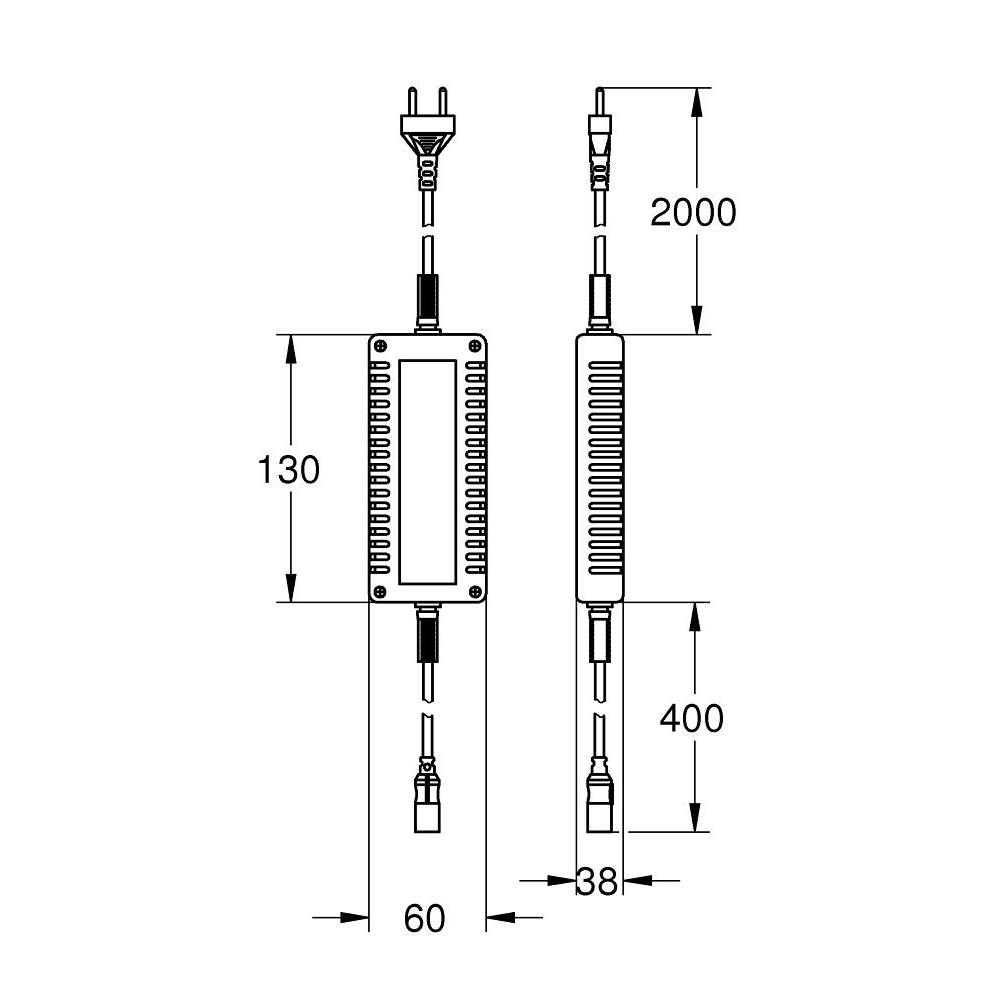

Height (mm)
75.0
Length (mm)
335.0
Width (mm)
100.0
Net Weight (kg)
0.545
Gross Weight (kg)
0.545
Colors & Finishes
Chrome
Collection
F-digital deluxe
Segment
Others
