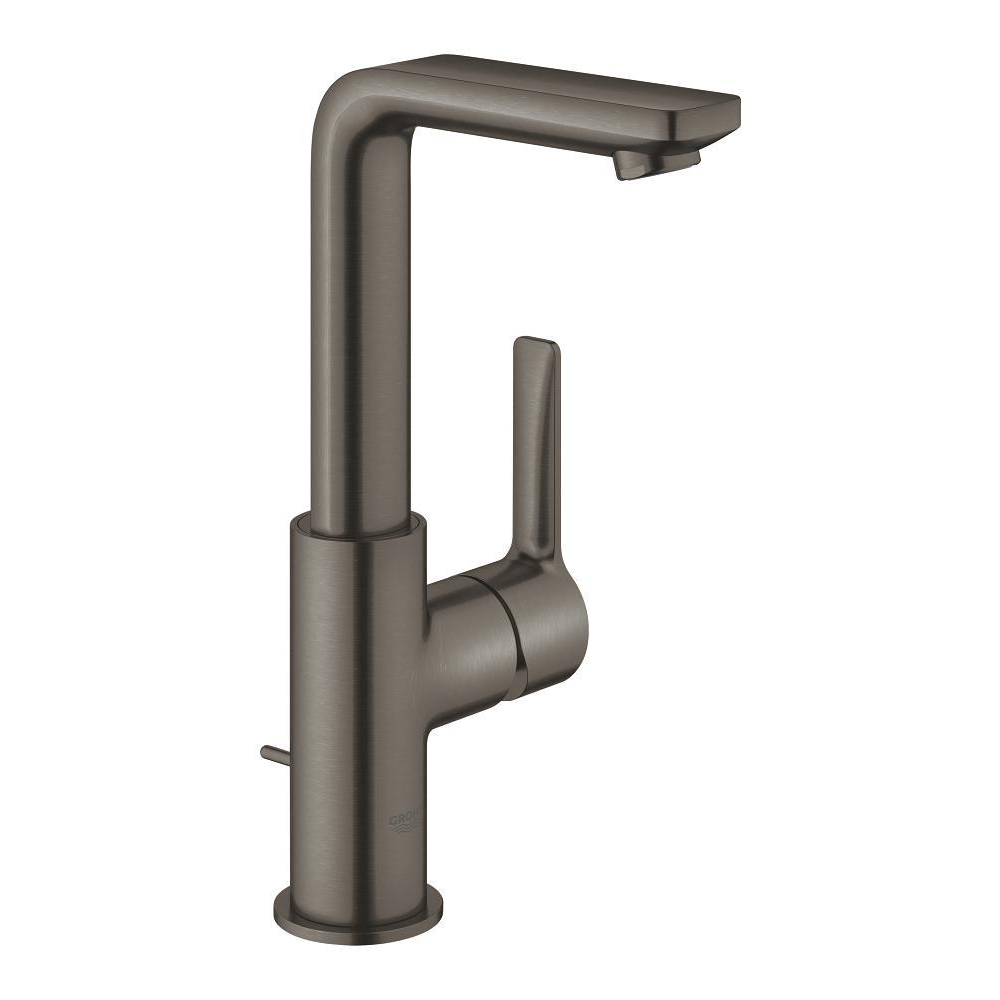

Single-lever basin mixer 1/2" L-Size
Model: 23296AL1
Lineare New
Technical Specification
Technical Details
Product Description
monobloc installation
metal lever
28 mm ceramic cartridge
with GROHE SilkMove
with temperature limiter
GROHE Long-Life finish
GROHE EcoJoy - Less water, perfect flow
maximum flow rate (at 3 bar): 5 l/min
SpeedClean mousseur
GROHE FastFixation Plus installation system
swivel spout with mousseur
and stop limiter
pop-up waste set 1 1/4"
flexible connection hoses
min. recommended pressure 1.0 bar
Style
Cosmopolitan
Installation Type
Deck mounted

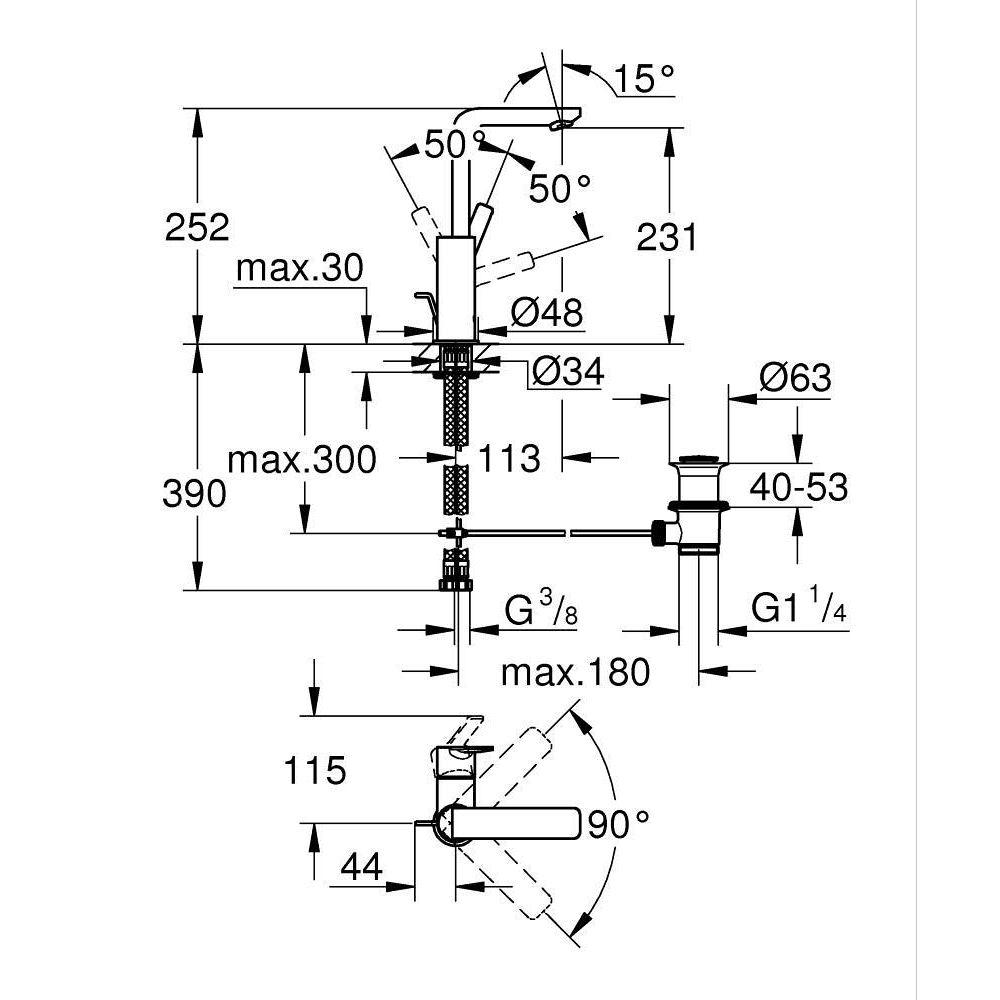

Height (mm)
115.011
Length (mm)
389.992
Width (mm)
200.0
Net Weight (kg)
2.64
Gross Weight (kg)
2.64
Colors & Finishes
Brushed hard graphite
Collection
Lineare New
Segment
Luxury
Features & Technologies
High Spout (Bathroom)
Swivel Range 90
GROHE EcoJoy
GROHE SilkMove
