GROHE QuickFix (wallmounted)
Product Catalog

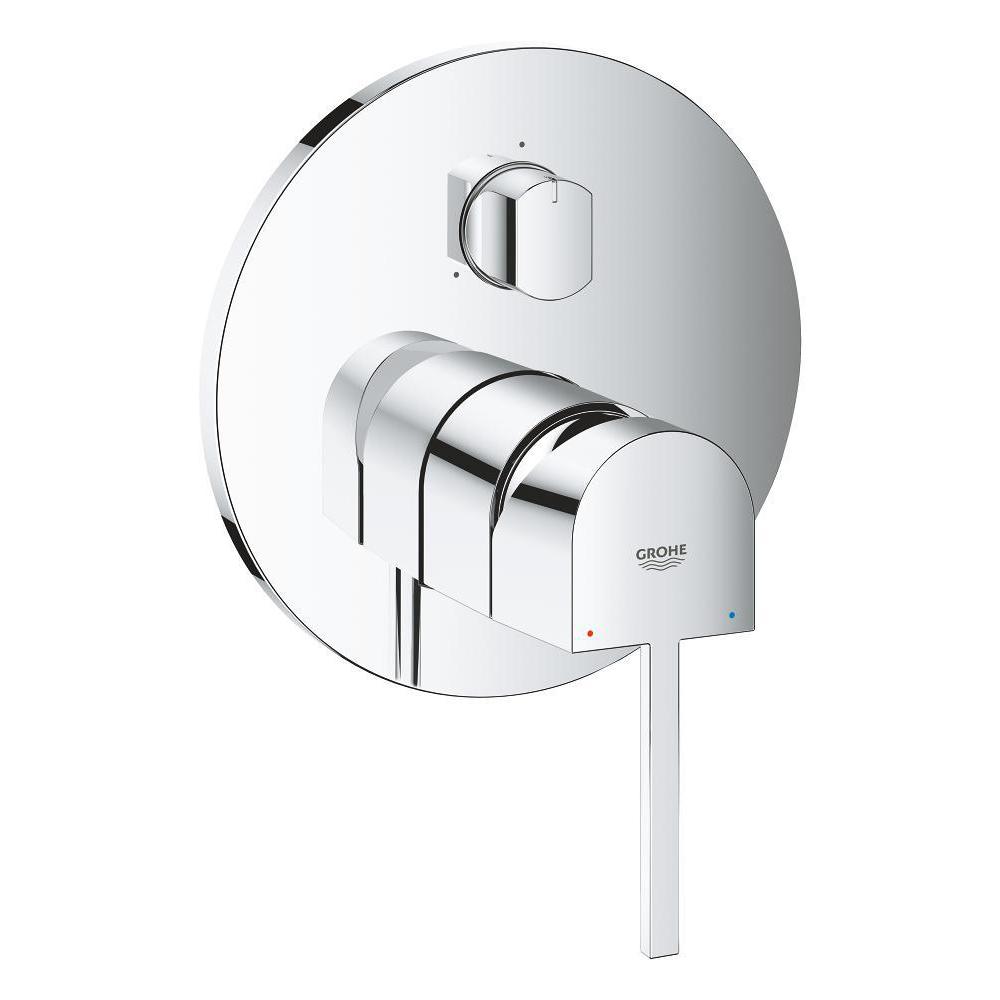

Single-lever mixer with 3-way diverter
Model: 24093003
GROHE Plus 2019
Technical Specification
Technical Details
Product Description
trim set for GROHE Rapido SmartBox (35 600/35 604)
GROHE SilkMove 46 mm ceramic cartridge
GROHE Long-Life finish
wall escutcheon with GROHE FastFixation
(covered escutcheon- and shaft sealing, covered fixing)
metal escutcheon, retroactively 6° adjustable
metal lever
3-way diverter
flow performance:
outlet A = 27 l/min,
outlet B = 27 l/min,
outlet C = 27 l/min
without roughing-in-set
Style
Cosmopolitan
Installation Type
Wall mounted concealed

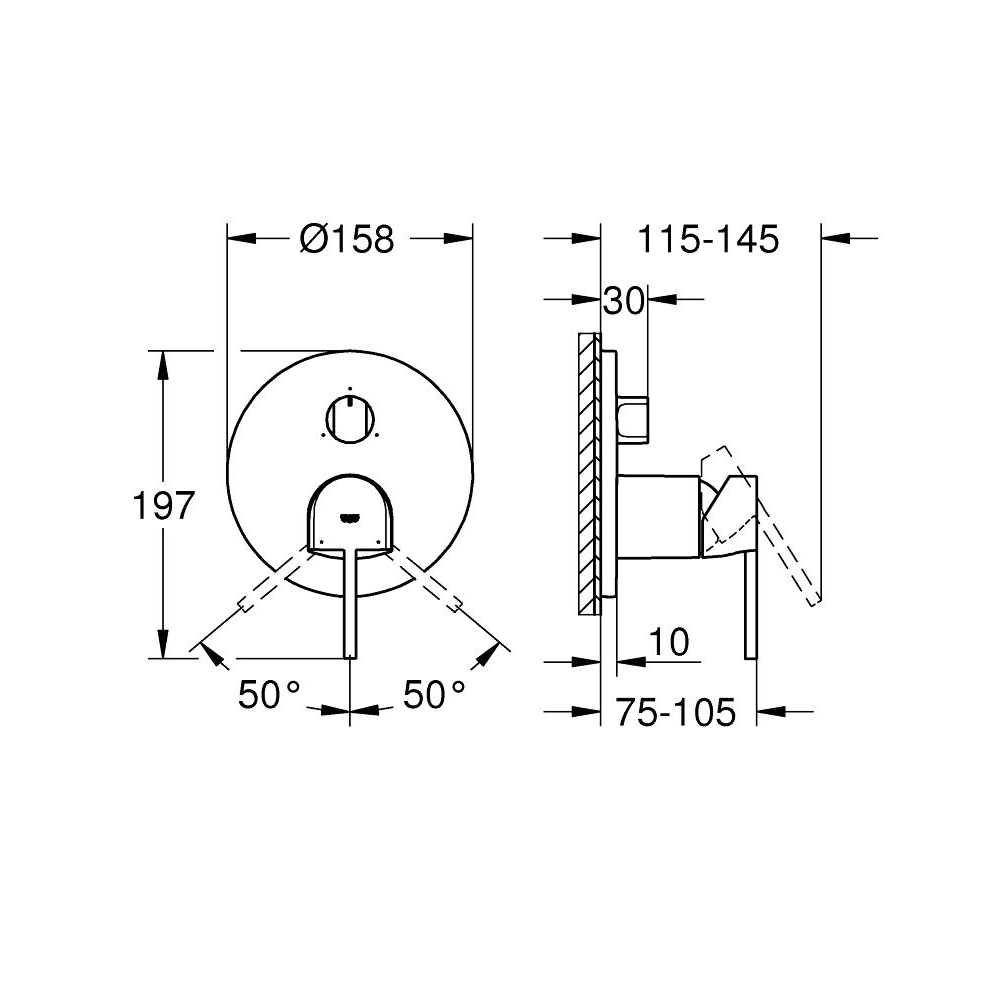

Height (mm)
200.0
Length (mm)
243.0
Width (mm)
180.0
Net Weight (kg)
1.78
Gross Weight (kg)
1.78
Colors & Finishes
Chrome
Collection
GROHE Plus 2019
Segment
Luxury
Features & Technologies
GROHE StarLight
GROHE SilkMove
