GROHE StarLight
Product Catalog

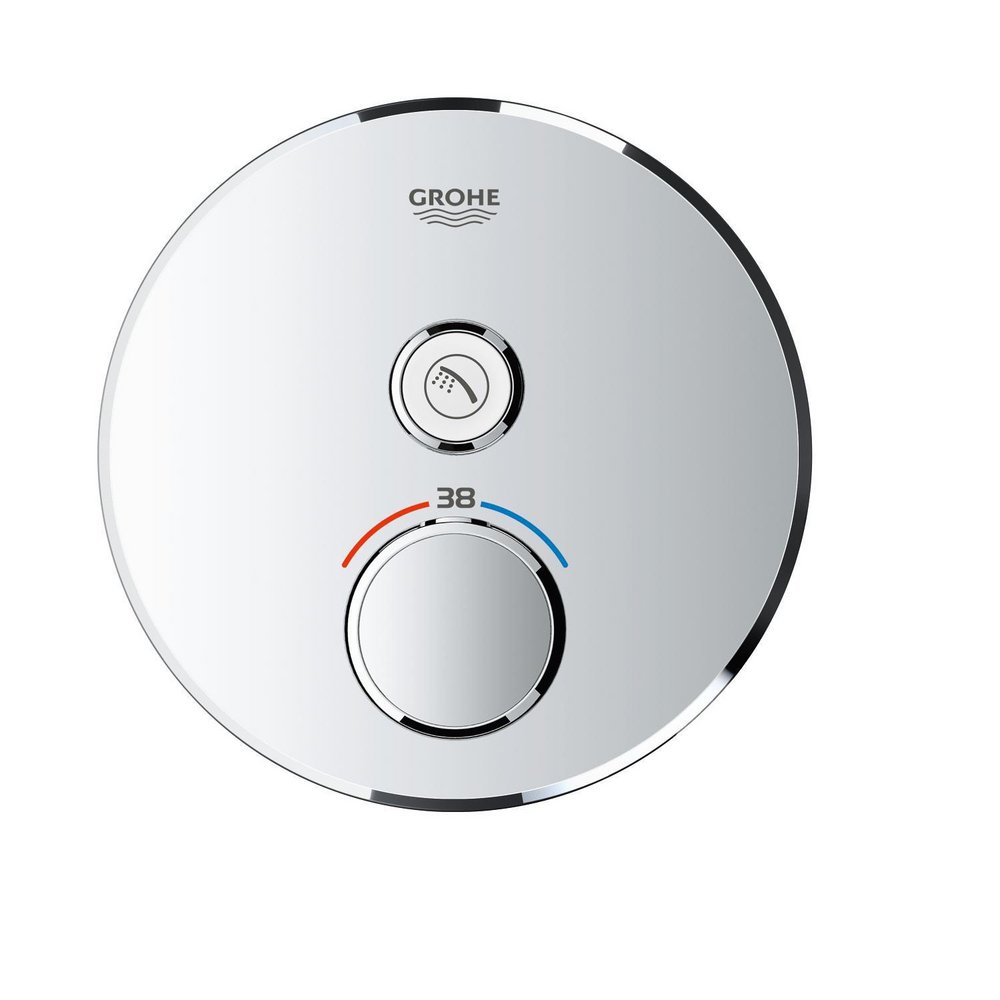

Thermostat for concealed installation with one valve
Model: 29118000
Grohtherm SmartControl
Technical Specification
Technical Details
Product Description
trim set for GROHE Rapido SmartBox (35 600/35 604)
metal wall escutcheon with GROHE FastFixation (covered escutcheon
and shaft sealing, covered fixing), retroactively 6° adjustable
GROHE Long-Life finish
GROHE SmartControl push for ON-OFF, turn for volume adjustment from GROHE Water Saving to Full Flow
exchangeable symbols
GROHE TurboStat compact cartridge with wax thermoelement
GROHE ProGrip with knurl structure
GROHE SafeStop safety button at 38°C
(calibration required)
GROHE SafeStop Plus optional temperature limiter at 43°C or 46°C included
built-in non return valve
and dirt strainers
without roughing-in-set
flow performance:
outlet A (to external shut-off) = 34 l/min
outlet B/C = 29 l/min
Style
Missing
Installation Type
Wall mounted concealed

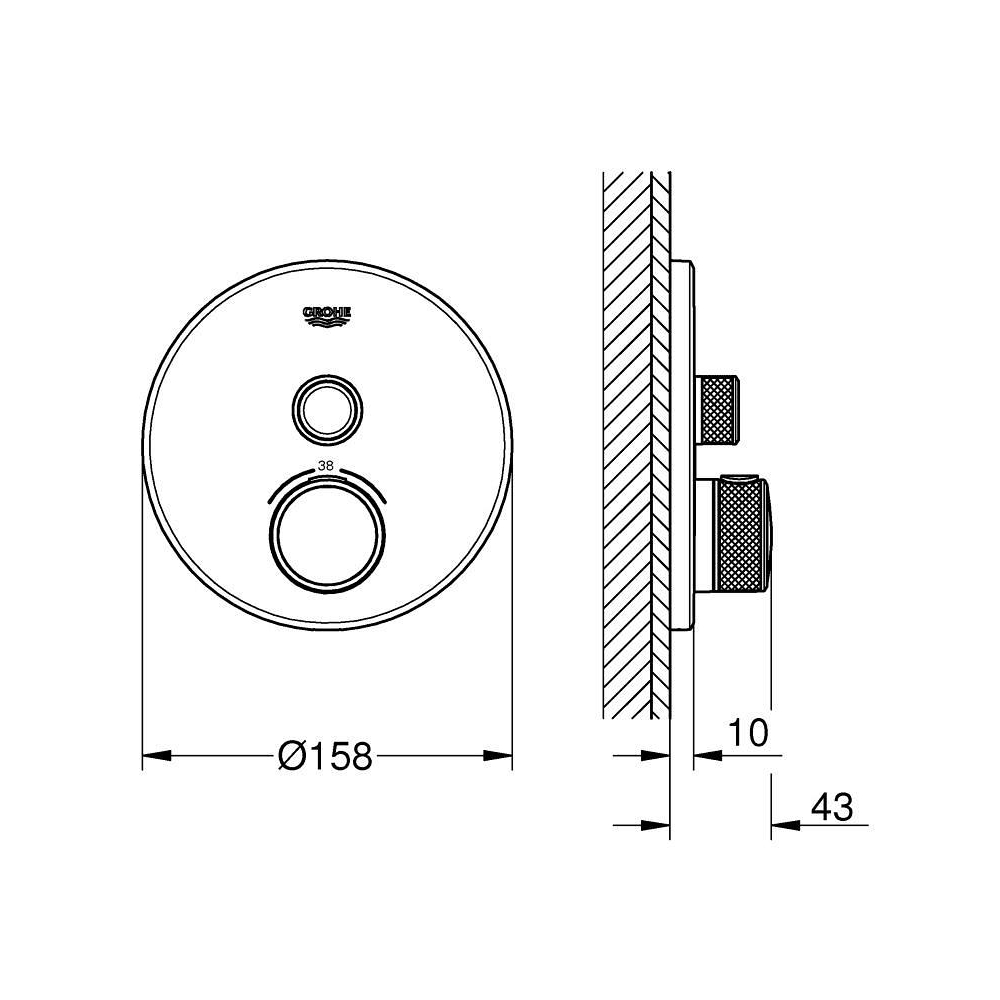

Height (mm)
243.0
Length (mm)
200.0
Width (mm)
180.0
Net Weight (kg)
1.585
Gross Weight (kg)
1.585
Colors & Finishes
Chrome
Collection
Grohtherm SmartControl
Segment
Luxury
Features & Technologies
GROHE EcoJoy
SmartControl
GROHE TurboStat
SafeStop
