GRT SmartControl THM trimset shw. rd 1SC
Model: 29118A00
Grohtherm SmartControl
Technical Specification
Technical Details
Product Description
trim set for GROHE Rapido SmartBox (35 600/35 604)
metal wall escutcheon with GROHE FastFixation (covered escutcheon
and shaft sealing, covered fixing), retroactively 6° adjustable
GROHE Long-Life finish
GROHE SmartControl push for ON-OFF, turn for volume adjustment from GROHE Water Saving to Full Flow
exchangeable symbols
GROHE TurboStat compact cartridge with wax thermoelement
GROHE SafeStop safety button at 38°C
(calibration required)
GROHE SafeStop Plus optional temperature limiter at 43°C or 46°C included
built-in non return valve
and dirt strainers
without roughing-in-set
flow performance:
outlet A (to external shut-off) = 34 l/min
outlet B/C = 29 l/min
GROHE Rapido SmartBox (35 600/35 604)
Style
Missing
Installation Type
Wall mounted concealed

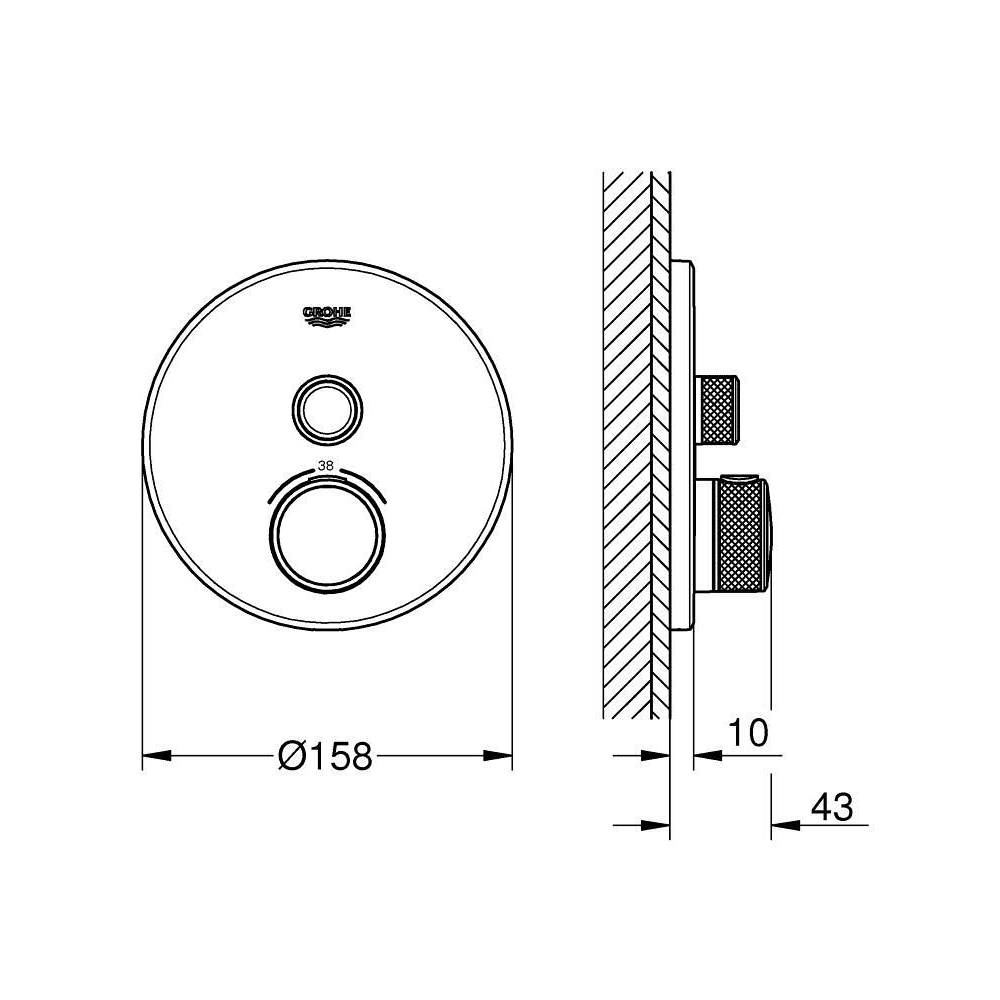

Height (mm)
180.0
Length (mm)
245.0
Width (mm)
200.0
Net Weight (kg)
1.485
Gross Weight (kg)
1.485
Colors & Finishes
Hard graphite
Collection
Grohtherm SmartControl
Segment
Luxury
Features & Technologies
GROHE TurboStat
SafeStop
GROHE EcoJoy
GROHE StarLight (non-chrome)
