Product Description

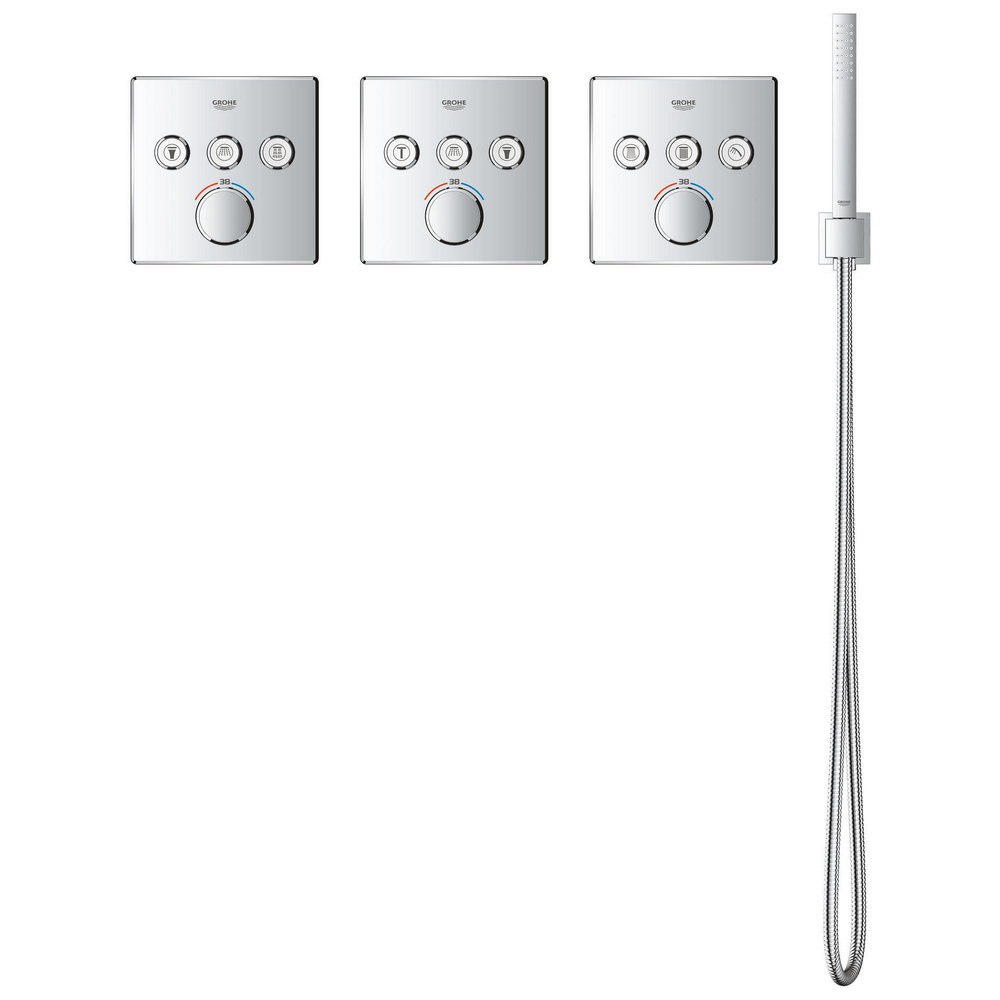

trim set for GROHE Rapido SmartBox (35 600/35 604) metal wall escutcheon with GROHE FastFixation (covered escutcheon and shaft sealing, covered fixing), retroactively 6° adjustable GROHE Long-Life finish GROHE SmartControl push for ON-OFF, turn for volume adjustment from GROHE Water Saving to Full Flow exchangeable symbols GROHE TurboStat compact cartridge with wax thermoelement GROHE ProGrip with knurl structure GROHE SafeStop safety button at 38°C (calibration required) GROHE SafeStop Plus optional temperature limiter at 43°C or 46°C included built-in non return valve and dirt strainers multiple outlets can be run simultaneously without roughing-in-set flow performance: outlet A = 23 l/min outlet B = 27 l/min outlet C = 23 l/min outlet A + B = 33 l/min outlet A + B + C = 36 l/min

Missing

Installation Type

Wall mounted concealed

Height (mm)

245.0

Length (mm)

200.0

Width (mm)

180.0

Net Weight (kg)

1.795

Gross Weight (kg)

1.795

Colors & Finishes

Chrome

Grohtherm SmartControl

Luxury
