Product Description

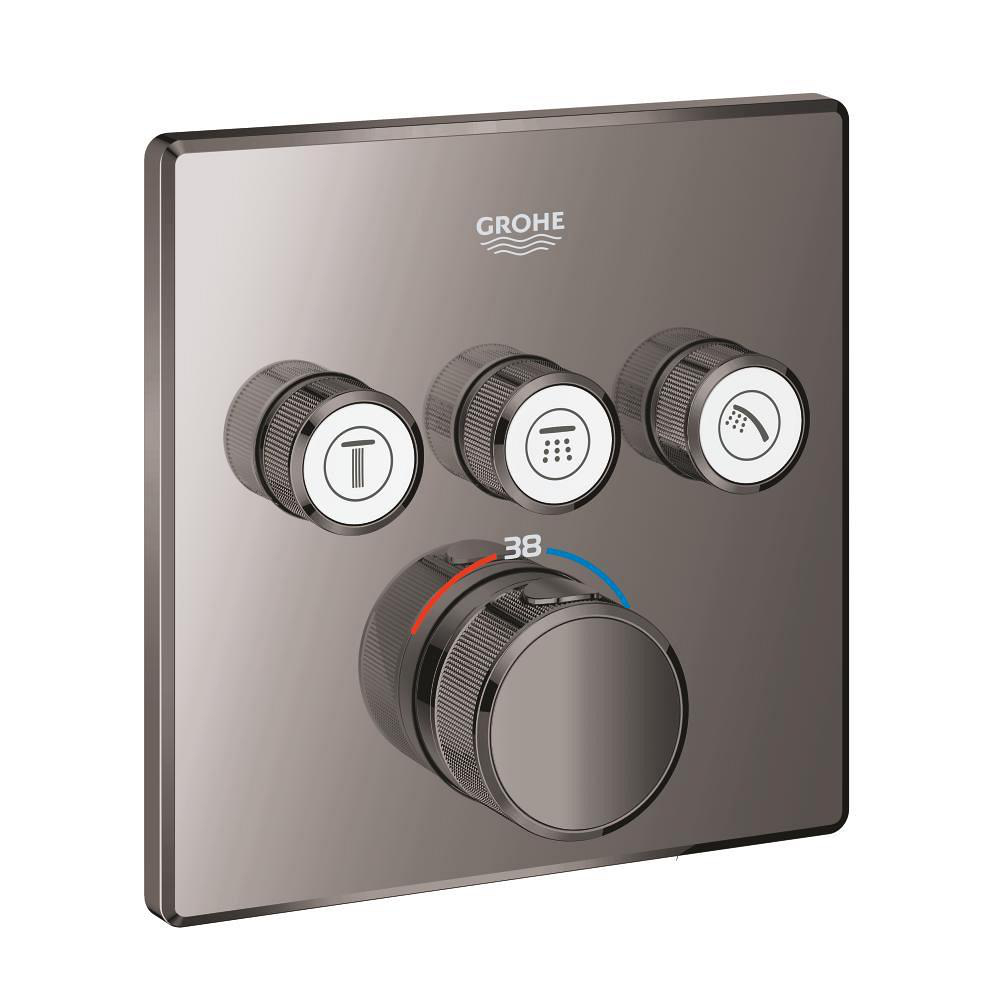

trim set for GROHE Rapido SmartBox (35 600/35 604) metal wall escutcheon with GROHE FastFixation (covered escutcheon and shaft sealing, covered fixing), retroactively 6° adjustable GROHE Long-Life finish GROHE SmartControl push for ON-OFF, turn for volume adjustment from GROHE Water Saving to Full Flow exchangeable symbols GROHE TurboStat compact cartridge with wax thermoelement GROHE SafeStop safety button at 38°C (calibration required) GROHE SafeStop Plus optional temperature limiter at 43°C or 46°C included built-in non return valve and dirt strainers multiple outlets can be run simultaneously without roughing-in-set flow performance: outlet A = 23 l/min outlet B = 27 l/min outlet C = 23 l/min outlet A + B = 33 l/min outlet A + B + C = 36 l/min

Missing

Installation Type

Wall mounted concealed

Height (mm)

243.002

Length (mm)

200.0

Width (mm)

180.01

Net Weight (kg)

2.03

Gross Weight (kg)

2.03

Colors & Finishes

Hard graphite

Grohtherm SmartControl

Luxury
