GROHE QuickFix (sinks)
Product Catalog

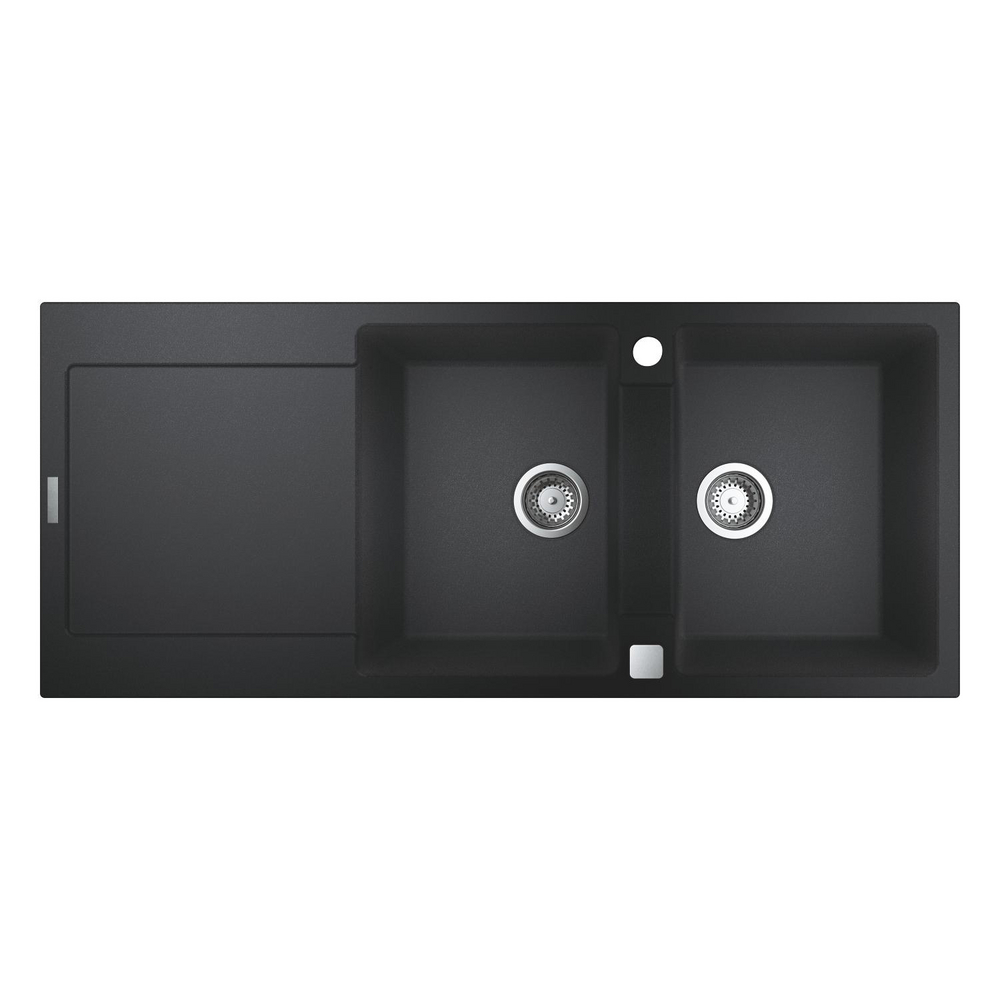

Composite sink with drainer
Model: 31647AP0
K500 Composite
Technical Specification
Technical Details
Product Description
model: K500 80-C 116/50 2.0 rev
mounting type: top mount
material: quartz composite
GROHE Whisper
min. cabinet size: 800 mm

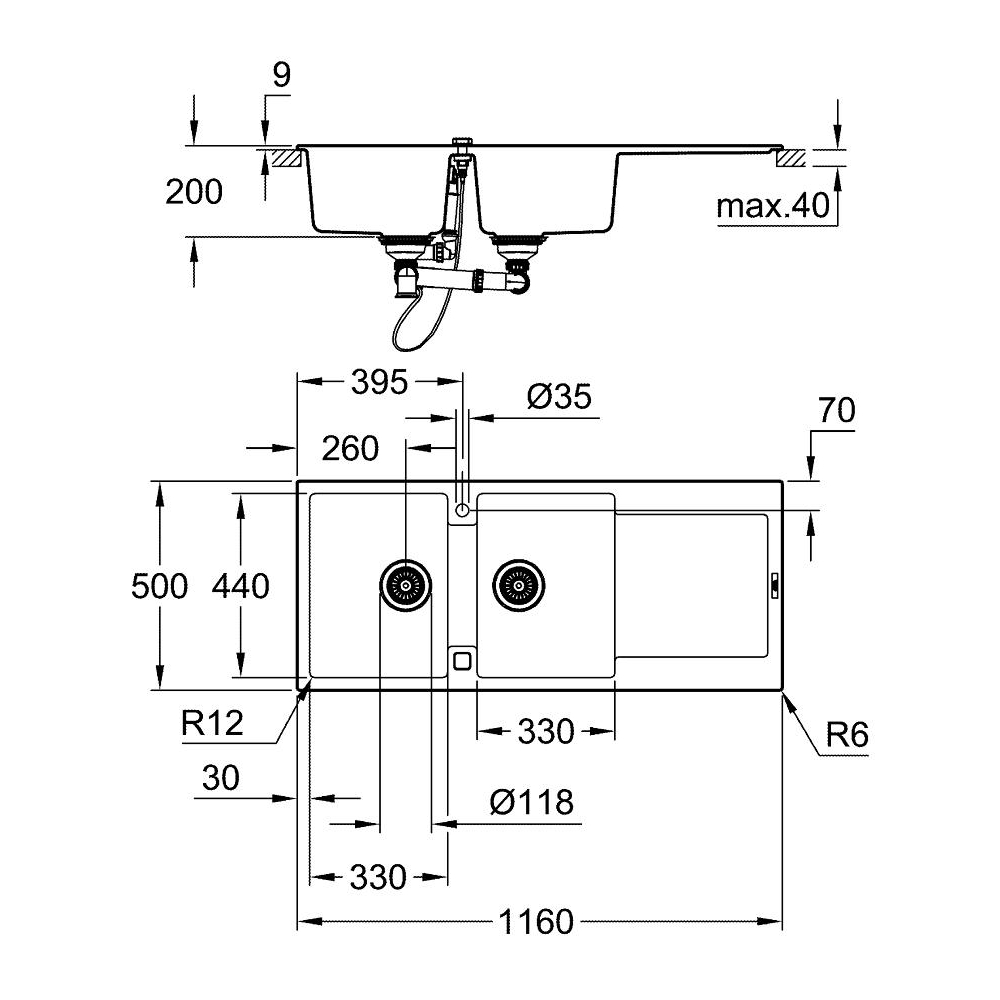

dimensions: 1160 x 500 mm
1 bowl: 330 x 440 x 200 mm
2 bowl: 330 x 440 x 200 mm
outer radius: R6, inner bowl radius: R12
GROHE FastFixation installation system
sink mountable left or right
cut-out: 1140 x 480 mm
drainer: automatic waste fitting
accessories included: automatic waste fitting with rotary handle,
waste kit, basket strainer waste, mounting set
optional push to open excenter (40 986 SD0)
amount of fasteners included (top mount): 12
heat resistant up to 180° C
Style
Contemporary
Installation Type
Top mount
Height (mm)
400.0
Length (mm)
1300.0
Width (mm)
660.0
Net Weight (kg)
36.0
Gross Weight (kg)
36.0
Colors & Finishes
Granite black
Collection
K500 Composite
Segment
Mass
Features & Technologies
Automatic waste fitting with remote control
GROHE Whisper (sinks)
Composite material (composite sinks)
Spacious bowls (composite sinks)
