GROHE EcoJoy
Product Catalog

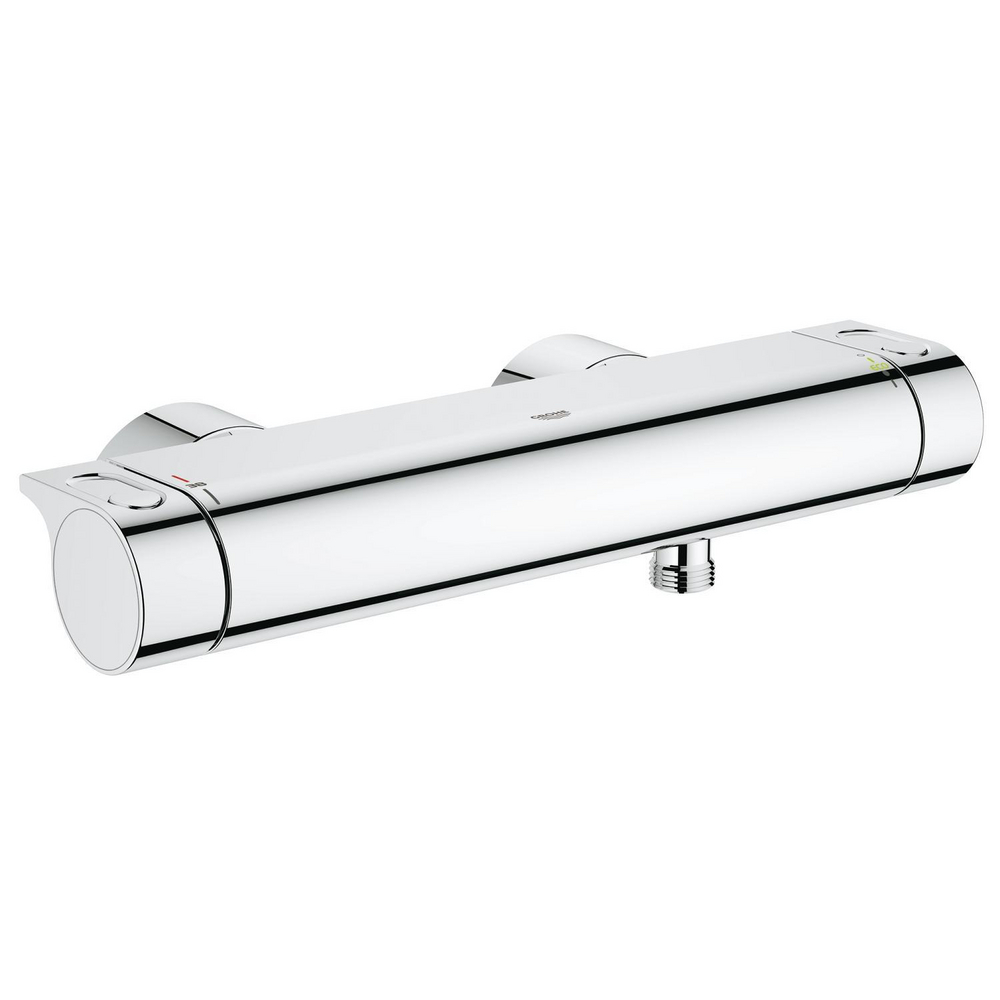

Thermostat shower mixer
Model: 34169001
Grohtherm 2000 NEW
Technical Specification
Technical Details
Product Description
wall mounted
100% GROHE CoolTouch consisting of safety
housing + S-unions with CoolTouch escutcheons
GROHE Long-Life finish
GROHE Aqua Paddle ergonomically shaped handles
GROHE SafeStop safety button at 38°C
(calibration required)
GROHE SafeStop Plus optional temperature limiter at 43°C included
GROHE TurboStat compact cartridge with wax thermoelement
integrated mixed water shut off
volume handle with GROHE EcoButton
(economy button with individually
adjustable economy stop)
ceramic headpart 1/2", 180°
shower bottom outlet 1/2"
built-in non return valves
dirt strainers
protected against backflow
covered S-unions, CoolTouch escutcheons with wall sealing
optional upgrade: GROHE EasyReach shower tray (18 608 001)
GROHE EcoJoy - Less water, perfect flow
Style
Contemporary
Installation Type
Wall mounted exposed

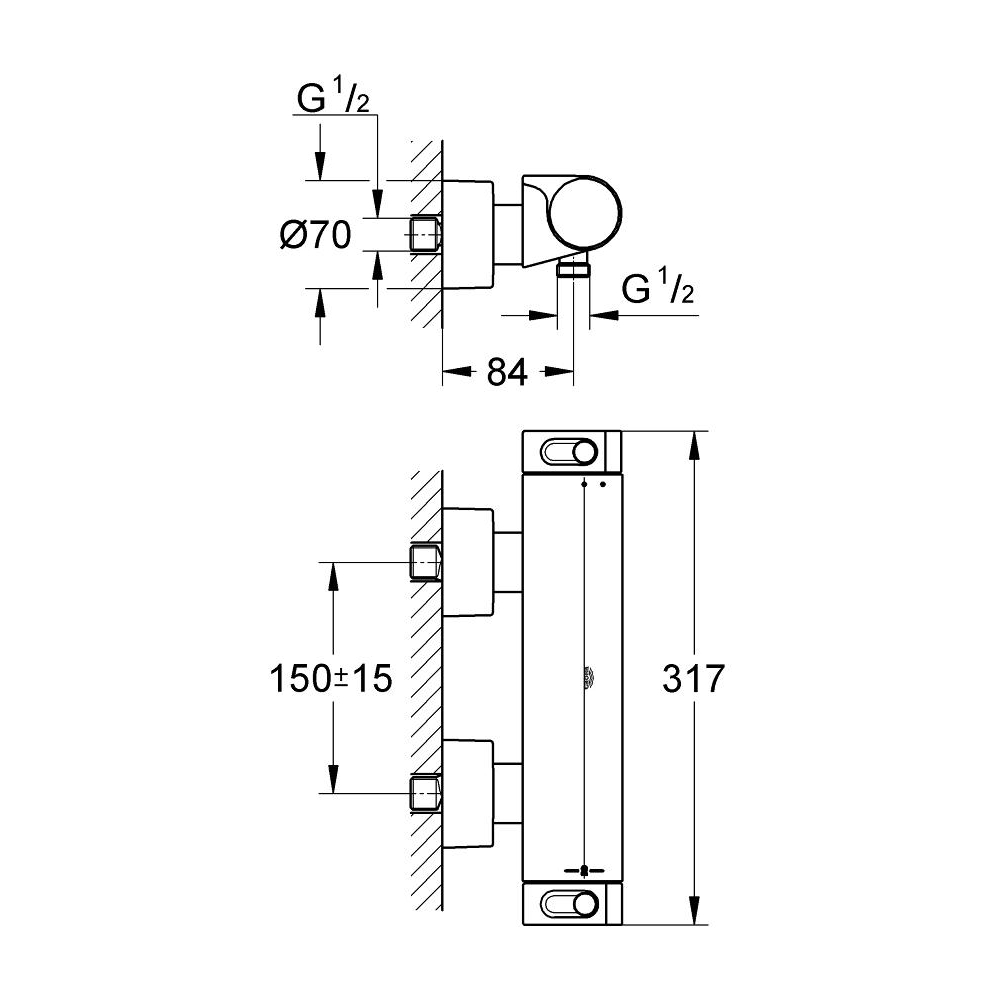

Height (mm)
92.0
Length (mm)
436.0
Width (mm)
130.0
Net Weight (kg)
3.515
Gross Weight (kg)
3.515
Colors & Finishes
Chrome
Collection
Grohtherm 2000 NEW
Segment
Luxury
Features & Technologies
GROHE TurboStat
SafeStop
GROHE CoolTouch (Thermostat)
Aqua Paddle
