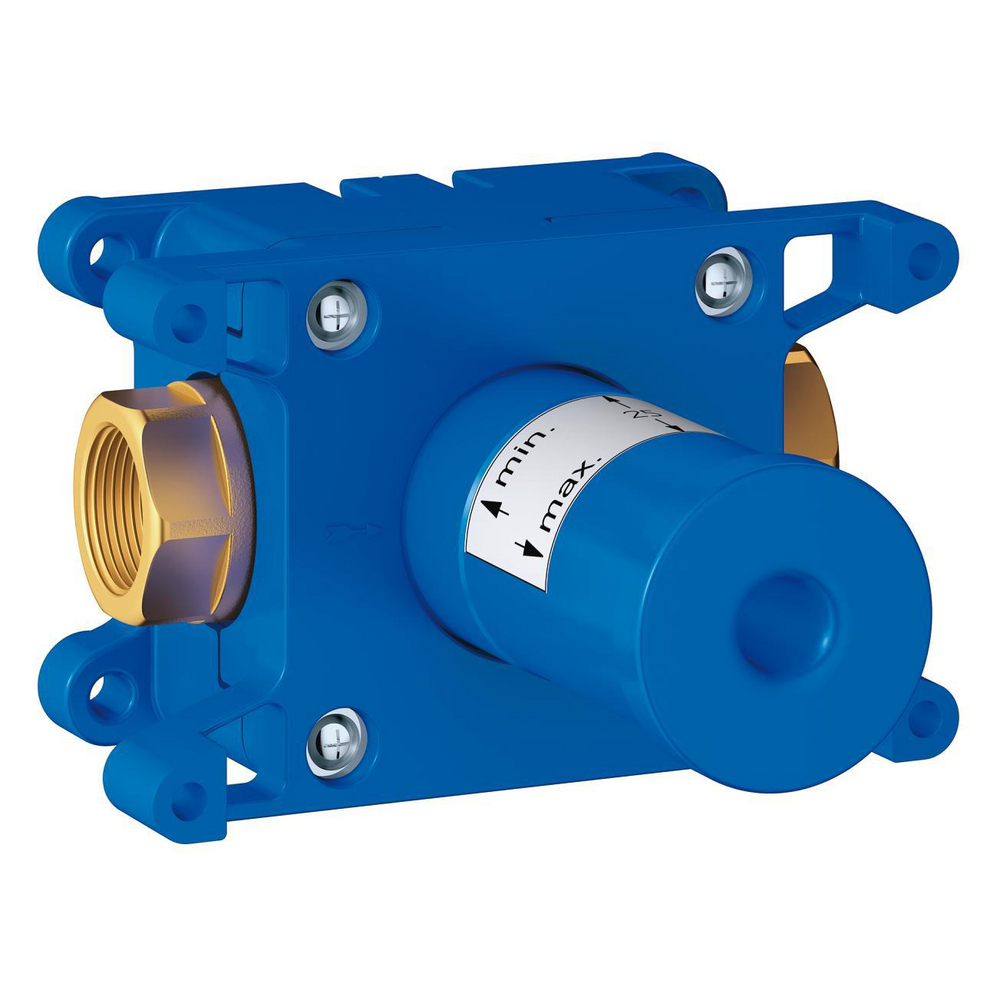

Rough-in for single volume control
Model: 35028000
Rapido C
Technical Specification
Technical Details
Product Description
for grid installation of Grohtherm Custom Shower system
built-in box with removable protection cover
waterproof membrane base for wall sealing
for masonry and drywall installation
fixing points for front and back wall
body of DR brass
pre-assembled ceramic headpart 3/4"
connection threads 1/2"

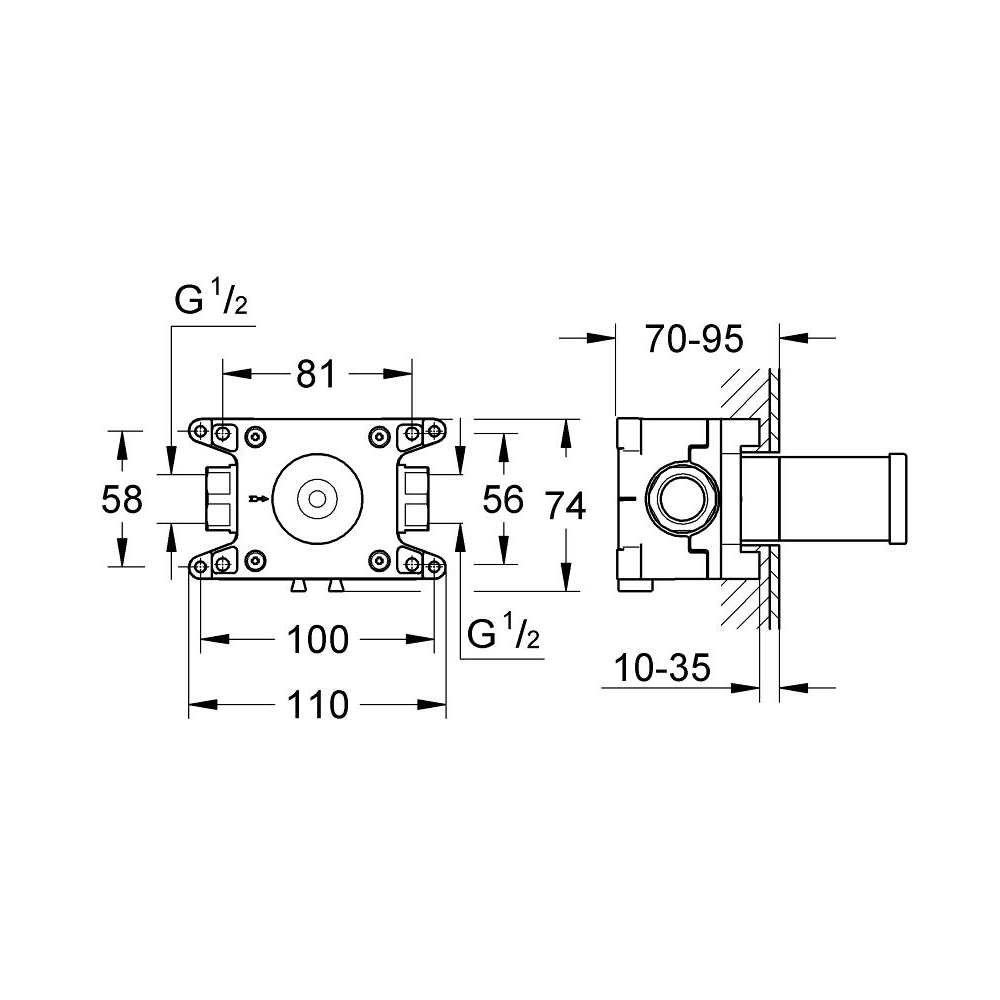

installation depth 70 - 95 mm
Style
Missing
Installation Type
Wall mounted concealed
Height (mm)
85.0
Length (mm)
155.0
Width (mm)
125.0
Net Weight (kg)
0.77
Gross Weight (kg)
0.77
Collection
Rapido C
Segment
Others
