Technical Specification
Technical Details
Product Description

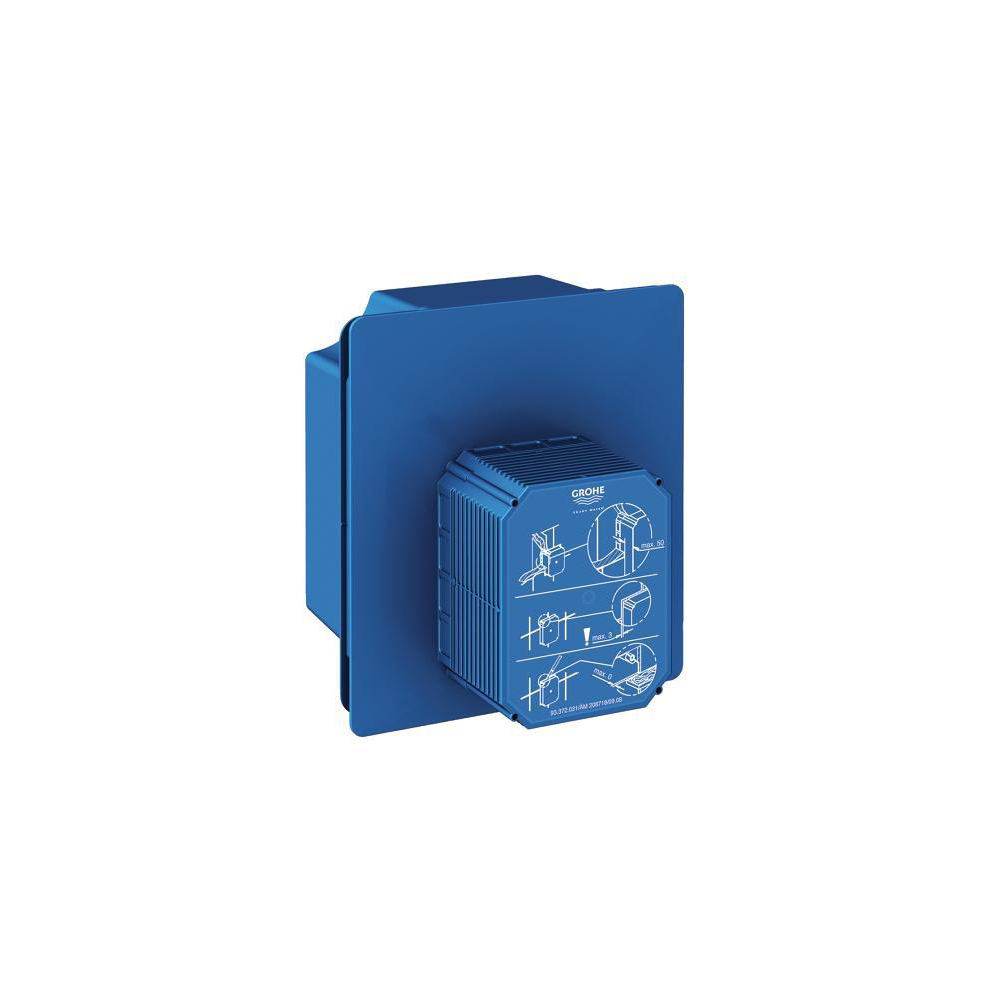

roughing-in set for urinal
for manual actuation or Tectron
infra-red electronic 6 V or 230 V
water group with stop valve
flow pressure min 0.5 bar
operating pressure max 10 bar
flush aid
functional unit checked ex factory
water supply connections ½" outer thread
connecting box for mains supply
installation box with gasket
fixing points for dry cladding and masonry-in
inspection shaft incl. protection
Installation Type
Wall mounted concealed
Height (mm)
165.0
Length (mm)
230.0
Width (mm)
210.0
Net Weight (kg)
0.88
Gross Weight (kg)
0.88
Colors & Finishes
Chrome
Collection
Rapido U
Segment
Others
