38525001

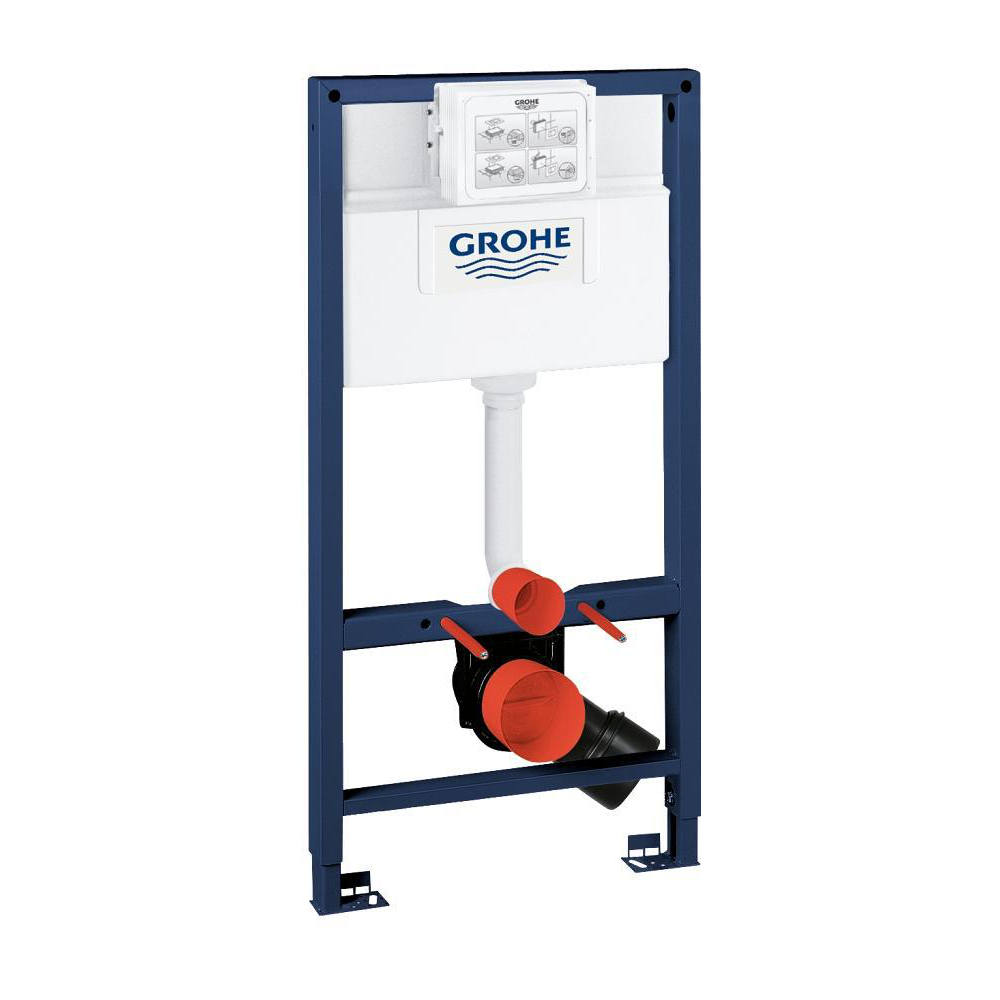

Element for WC, 1.00 m installation height

Model: 38525001

Rapid SL

CAD File

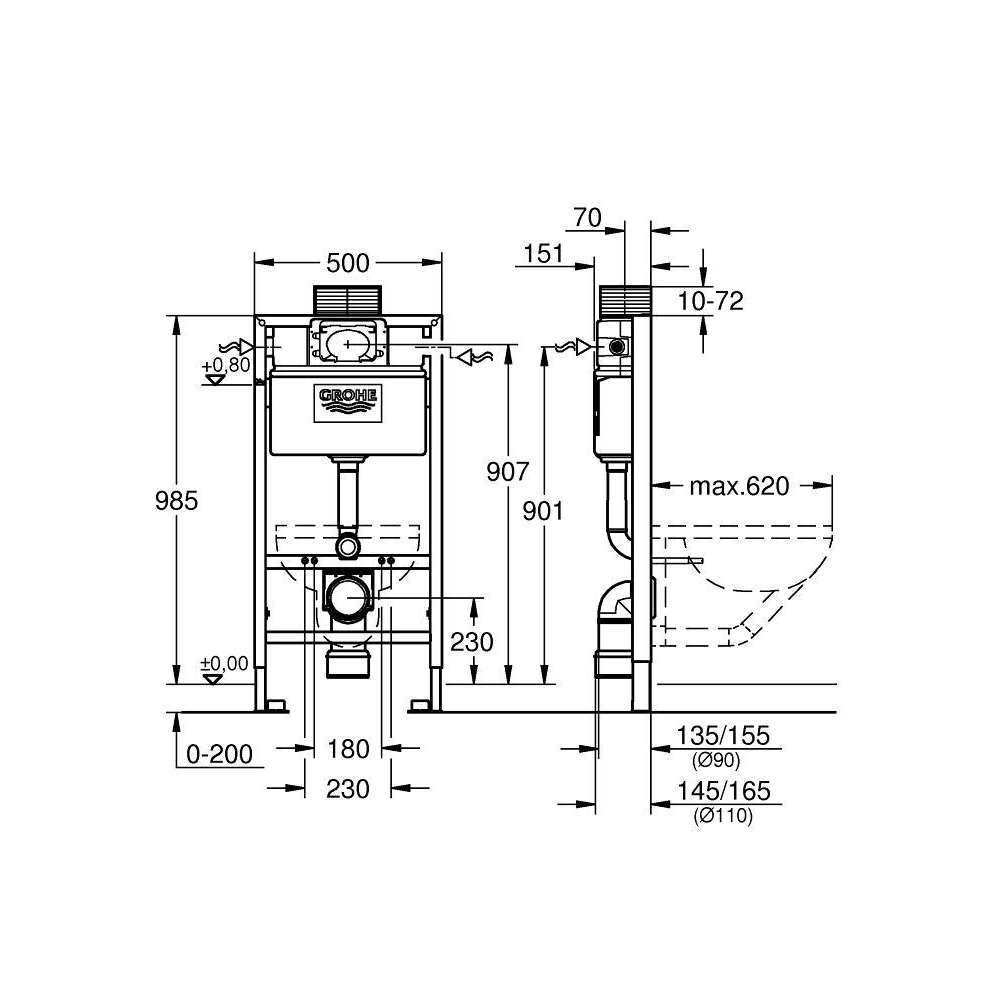

Dimensional Drawing
Installation Manual

Technical Specification

Technical Details

Product Description
with flushing cistern 6 - 3 l for on-the-wall installations or studded walls powder coated steel frame, self-supporting TÜV approved 2 WC fixing bolts fixing device for ceramic WC ceramics with small bearing area ( 205 mm) require additional accessory 38 779 000 distance of fixing bolts 180/230 mm outlet bend Ø 90 mm depth adjustable reducer Ø 90/110 mm inlet and outlet connecting set flushing cistern 6 - 9 l containing the following features: water supply from left/right or back Insulated against condensation ½" water supply connection including integrated angle valve and push fit flexible hose union for on-the-wall installation please order wall brackets 38 558 00M (sold separately) for mounting of small flush plates please order revision shaft 40 950 000 (sold separately)
Installation Type
Prewall, studdwall, freestand.
Height (mm)
165.0
Length (mm)
985.0
Width (mm)
520.0
Net Weight (kg)
11.8
Gross Weight (kg)
11.8
Collection
Rapid SL
Segment
Luxury

Features & Technologies

GROHE QuickFix (Rapid SL)

ToolFree

Safety

GROHE EcoJoy (WC)

GROHE Whisper

VS
