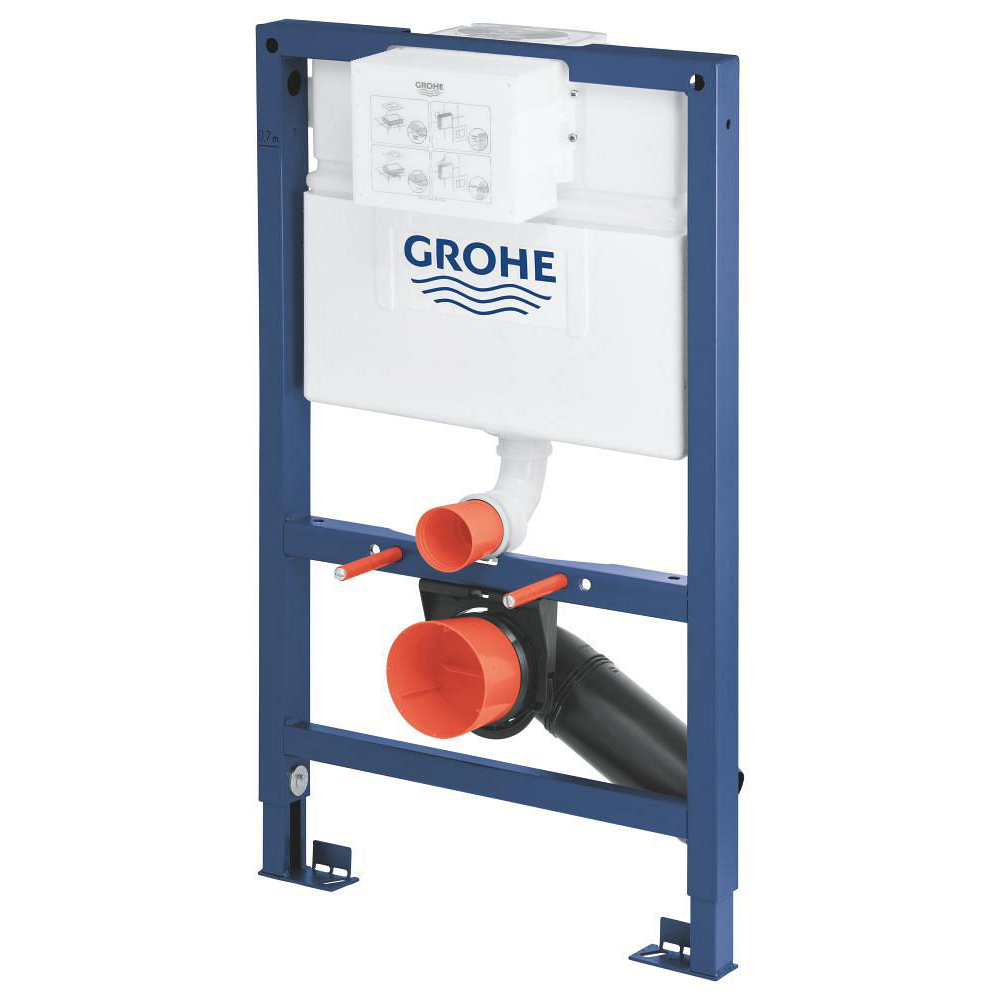

Element for WC, 0.82 m installation height
Model: 38526000
Rapid SL

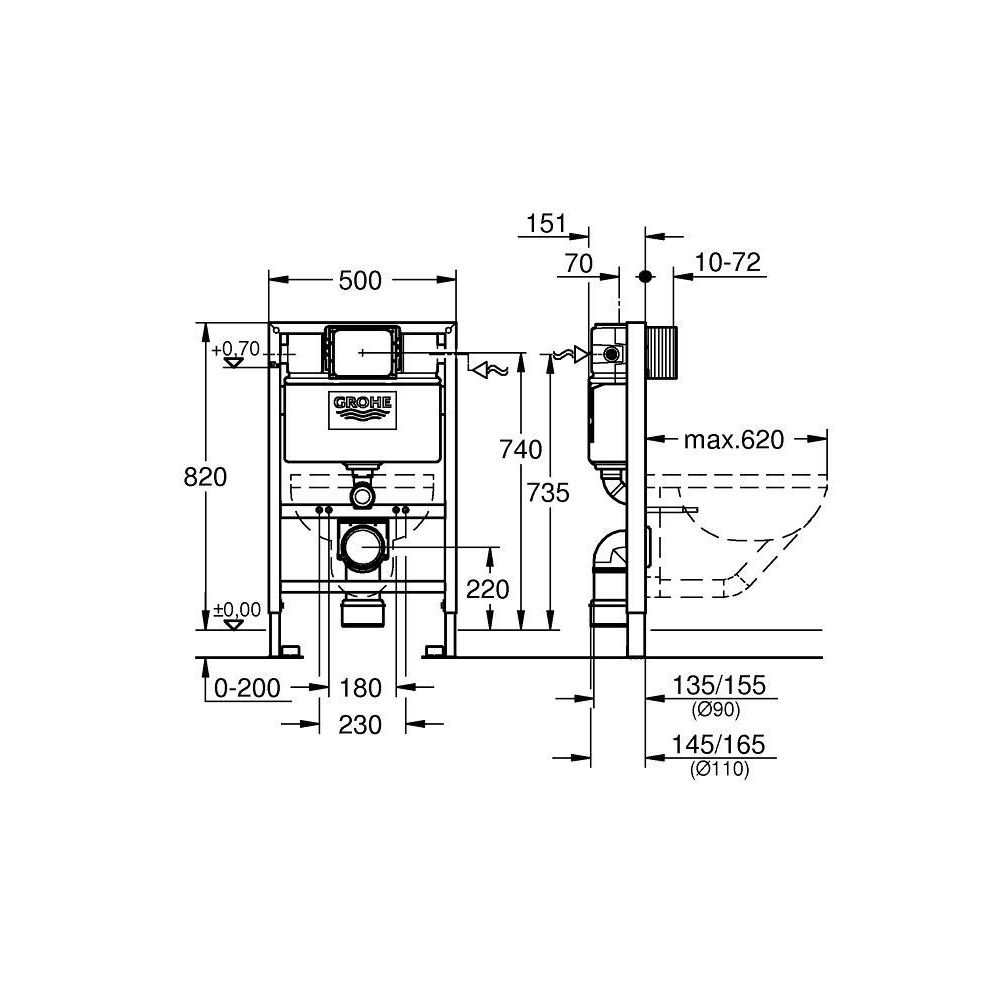

Technical Specification
Technical Details
Product Description
with flushing cistern 6 - 3 l
for on-the-wall installations or studded walls
powder coated steel frame, self-supporting
TÜV approved
2 WC fixing bolts
fixing device for ceramic
distance of fixing bolts 180/230 mm
PP outlet bend Ø 90 mm
depth adjustable
reducer Ø 90/110 mm
inlet and outlet connecting set
flushing cistern 6 - 9 l containing the following features:
water supply from left/right or back
Insulated against condensation
½" water supply connection including integrated
angle valve and push fit flexible hose union
for on-the-wall installation please order wall brackets 38 558 00M (sold separately)
for mounting of small flush plates please order revision shaft 40 950 000 (sold separately)
Installation Type
Prewall, studdwall, freestand.
Height (mm)
215.0
Length (mm)
840.0
Width (mm)
520.0
Net Weight (kg)
11.6
Gross Weight (kg)
11.6
Collection
Rapid SL
Segment
Luxury
Features & Technologies
Safety
GROHE EcoJoy (WC)
GROHE Whisper
GROHE QuickFix (Rapid SL)
