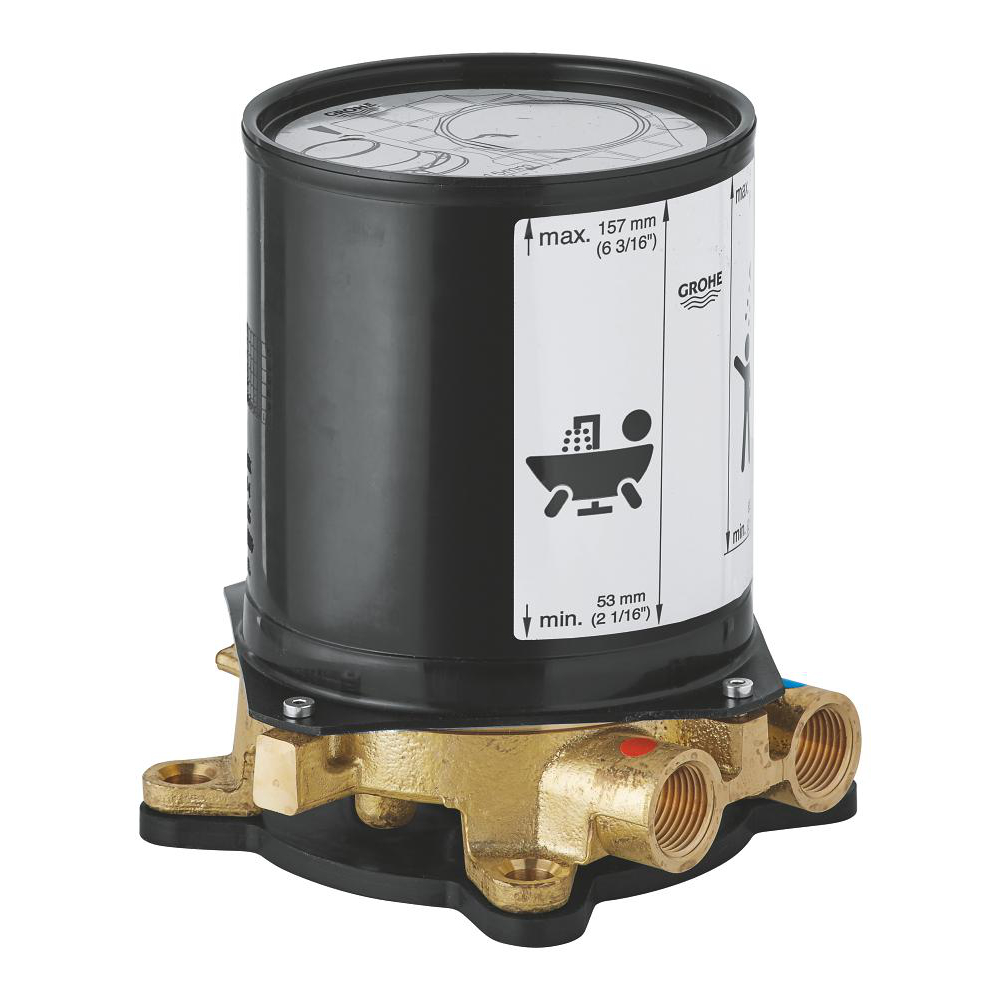

Product Description
for floor-mounted bath mixers/spouts and shower mixers
without finishing trim set
installation plate with 360° horizontal and 3° vertical adjustment

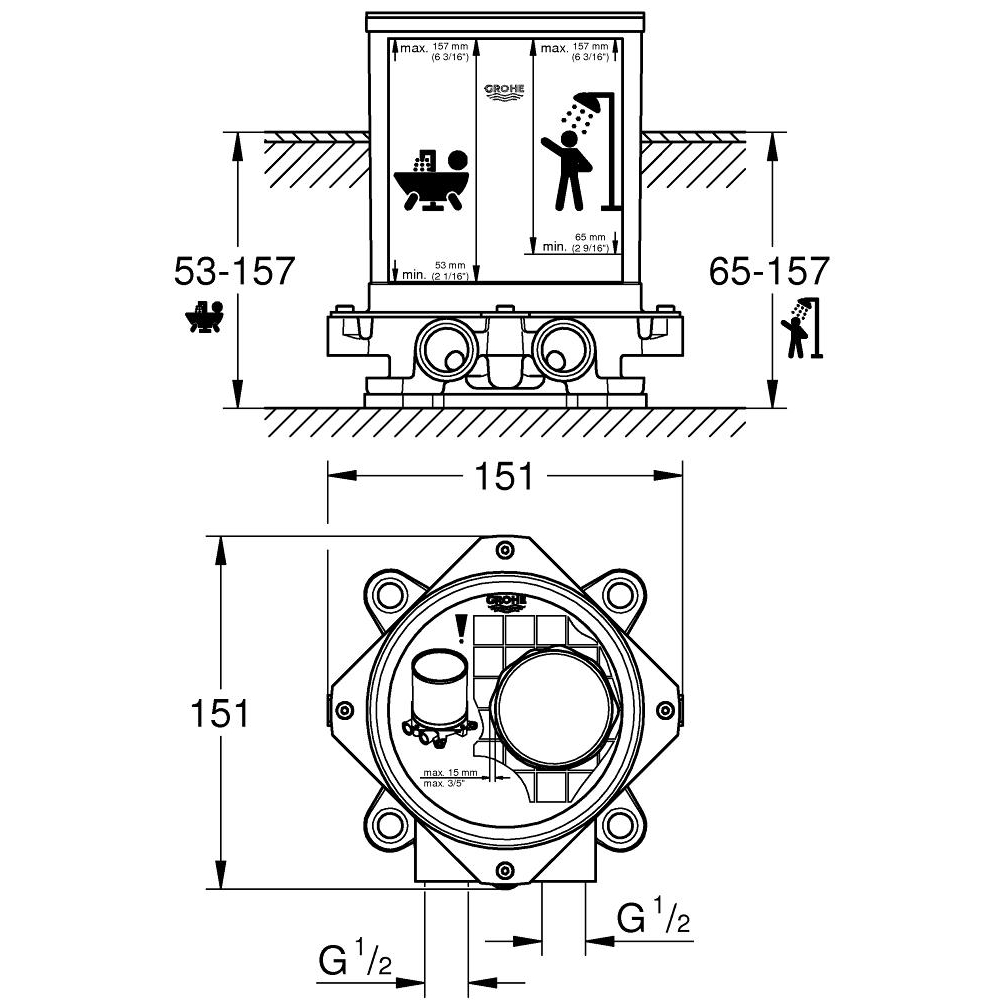

installation depth 53-157 mm for bath
mixers/spouts, depth compensation 104 mm
installation depth 65-157 mm for shower mixers, depth compensation 92 mm
two ½" female connections (hot/cold supplies)
flushing plug
Can take a single mixed supply
fixing material
Installation Type
Freestanding installation
Height (mm)
190.0
Length (mm)
235.0
Width (mm)
200.0
Net Weight (kg)
2.075
Gross Weight (kg)
2.075
Colors & Finishes
Chrome
Collection
Non Rapido Others
Segment
Others
